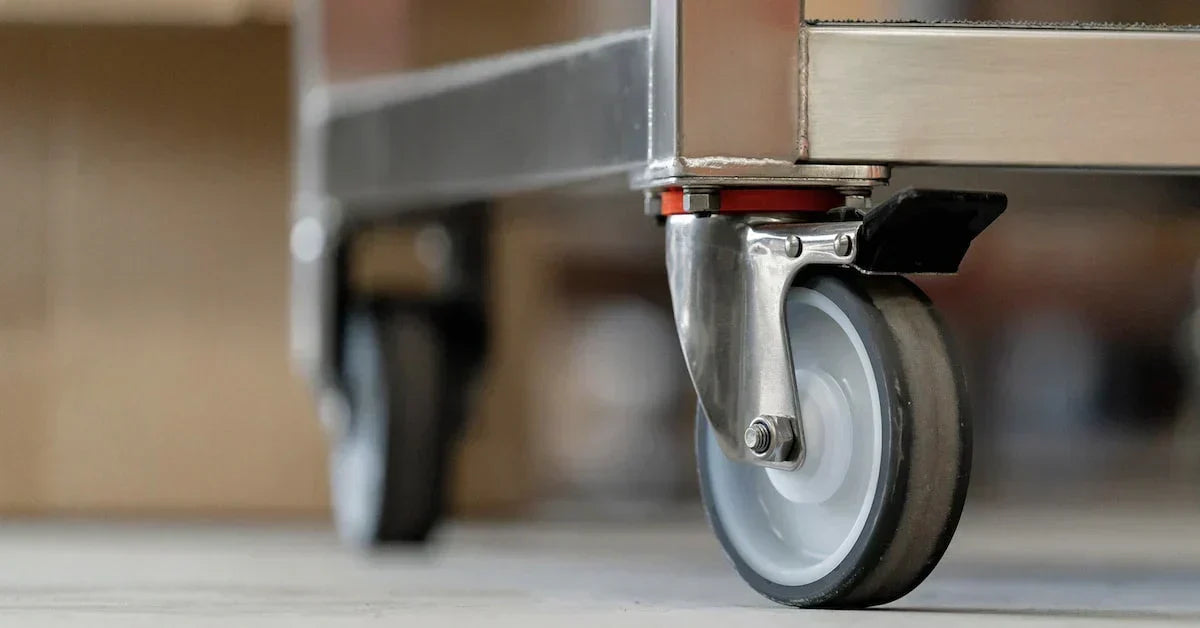

Beyond Static Load: Understanding Dynamic, Shock, and Impact Ratings for Caster Selection

Why Static Load Is Only Half the Story

In the caster industry, load capacity is often simply defined by Static Load—the maximum weight a caster can support while the equipment is standing still. However, in any real-world industrial or commercial setting, equipment is almost always moving, stopping, or traversing uneven surfaces.

This introduces two critical, yet often misunderstood, factors: Dynamic Load and Shock Load. Ignoring these forces is the leading cause of premature caster failure, compromised equipment, and increased safety risk. This technical guide breaks down these different load types and details the engineering solutions required to select casters that truly withstand the rigors of industrial motion.

The Three Faces of Load: Static vs. Dynamic vs. Shock

To ensure equipment longevity, the caster selection process must account for the forces exerted during movement.

A. Static Load: The Resting Weight

• Definition: The maximum weight a caster can support when the equipment is stationary. It is the easiest metric to calculate (Total Weight ÷ Number of Casters).

• Limitation: It is a baseline measurement that offers no insight into performance or safety during motion.

B. Dynamic Load: The Rolling Weight

• Definition: The maximum weight a caster can support while the equipment is being moved at a constant speed (usually walking pace) over a smooth, level surface.

• Critical Fact: The dynamic load rating is always lower than the static load rating because friction and rolling resistance place stress on the bearings and wheel material.

• The Safety Margin: A common engineering practice is to select a caster where the combined Dynamic Load Capacity exceeds the maximum calculated load by at least 25%.

C. Shock Load (Impact Load): The Moment of Stress

• Definition: The short-duration, high-intensity force exerted on a caster when the wheel hits an obstacle, drops off a curb, crosses an elevator gap, or is slammed into a wall.

• The Danger: Shock loads can generate forces three to five times the actual weight of the equipment, instantly exceeding the dynamic rating and causing component failure (e.g., bent forks, cracked wheels, or fractured swivel rigging).

• Mitigation: This force must be managed through specialized caster design, not just high load capacity.

Caster Design Factors to Survive Impact and Vibration

To successfully handle Dynamic and Shock Loads, engineers must focus on material resilience and structural integrity.

A. Wheel Material Resilience: Polyurethane vs. Nylon

The wheel tread is the first line of defense against impact:

• High-Rebound Polyurethane (PU): Excellent for dynamic loads. Its elastic memory allows it to momentarily deform when hitting an obstacle, absorbing a large percentage of the shock energy before it reaches the bearings. It then quickly returns to its original shape.

• Hard Nylon/Phenolic: Suitable for high static loads and extremely smooth floors. However, these materials transfer almost all impact energy directly into the caster's fork and the host equipment, making them poor choices for rough environments.

B. Fork and Swivel Rigging: The Role of Thickness and Welding

• Fork Thickness: Forks designed for high dynamic and shock loads feature thicker steel plate and robust, continuous welding around the axle and top plate. This prevents the metal from deforming under side-loading or vertical impact.

• Swivel Construction: Precision-machined, hardened ball bearings or tapered roller bearings are critical for preventing the swivel rigging from separating or binding under the constant twisting forces of dynamic movement.

Engineering Solutions for High-Impact Environments

When standard casters are insufficient to protect sensitive goods or traverse severe terrain, specialized solutions are required.

A. The Necessity of Shock Absorbing Casters

• Function: These casters incorporate internal spring mechanisms or polymer shock systems into the swivel rigging or fork structure.

• Value: They isolate the impact—dramatically reducing the G-force transmitted to the host equipment. This is non-negotiable for protecting sensitive electronics, calibrated instruments, or fragile materials during transit.

B. Optimizing for Dynamic Maneuverability

For applications requiring frequent, low-effort movement of heavy equipment (high dynamic use), the focus shifts to minimizing push/pull force:

• Precision Ball Bearings: Essential in the wheel hub to reduce rolling resistance.

• Larger Diameter Wheels: A larger wheel distributes the dynamic load more effectively and reduces the effort required to initiate movement over small debris or floor imperfections.

Conclusion: Investing in Engineered Endurance

Selecting a caster based on static load alone is a blueprint for failure. True longevity and safety are achieved by understanding that the Dynamic Load dictates efficiency and the Shock Load determines survival. By specifying casters with high-resilience wheel materials, reinforced swivel construction, and, where necessary, dedicated shock absorption systems, you are making a strategic investment in engineered endurance that protects both your employees and your high-value assets.
