5" Scaffold Caster Wheels with Dual Brake – 1,190 lb Capacity (Set of 4)

Specification

Application - scaffolding caster wheels are ideal for:

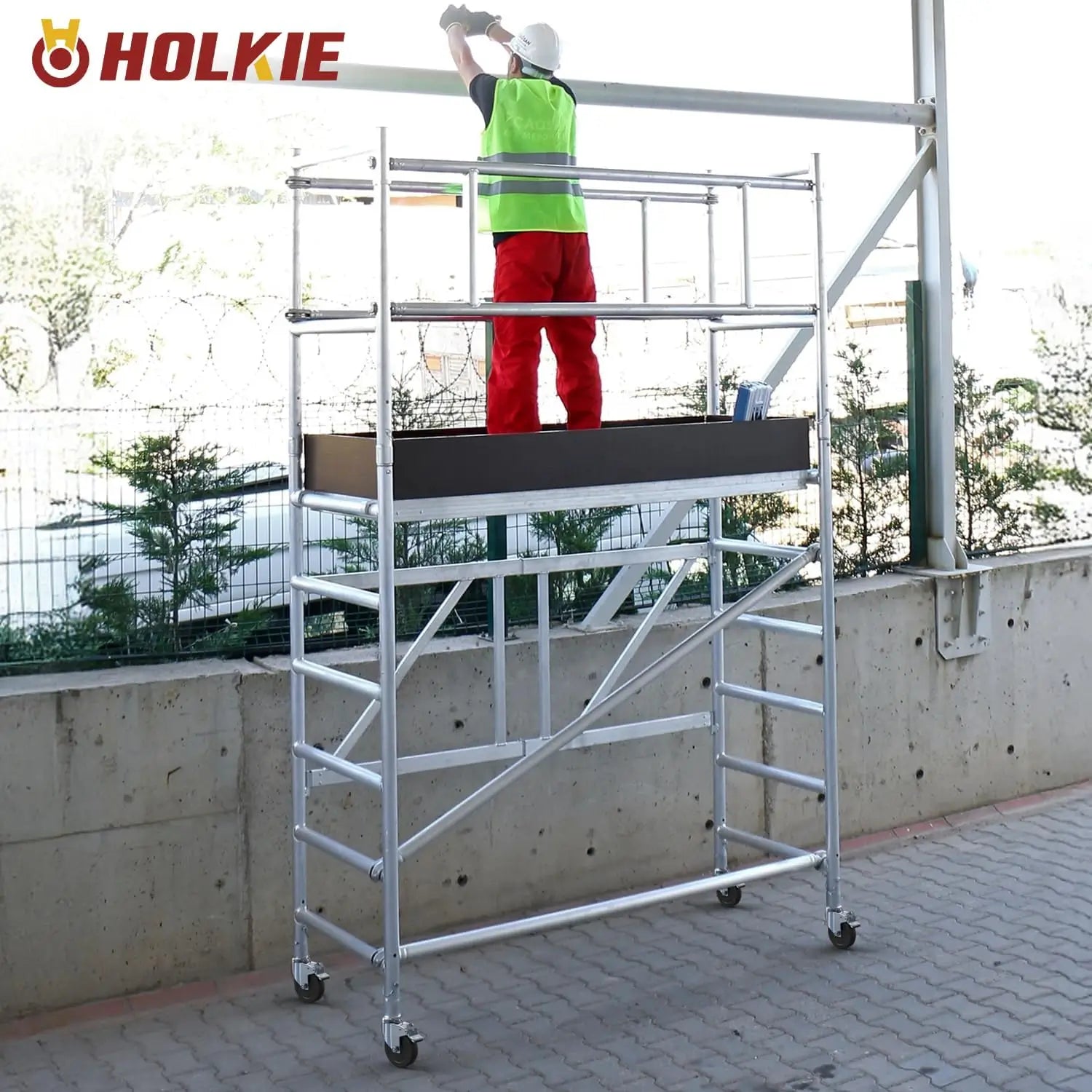

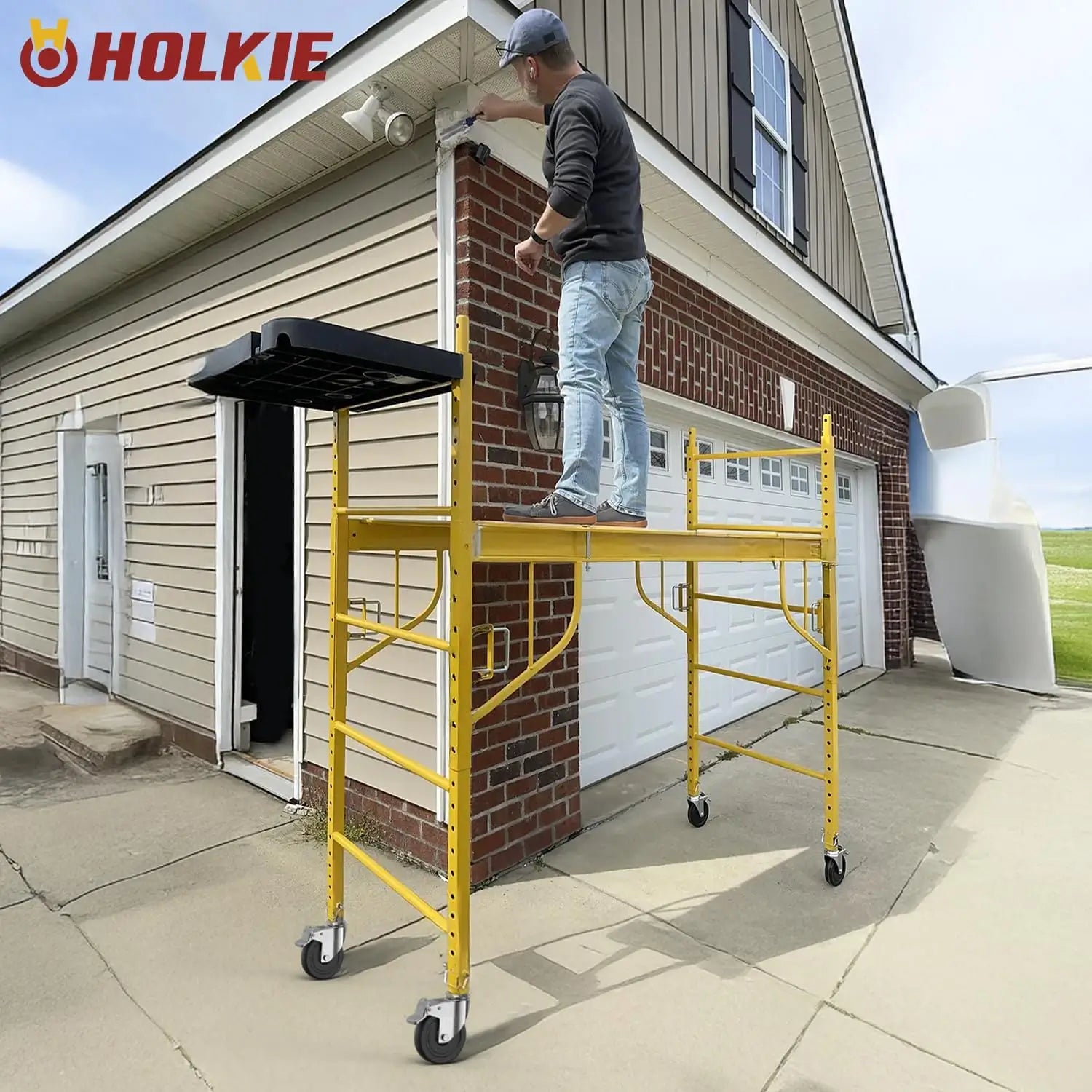

Heavy Duty Scaffold Casters for Mobile Scaffolding

These 5 inch scaffold caster wheels are designed for mobile scaffolding systems, providing smooth movement and reliable locking performance on construction sites, warehouses, and workshops.

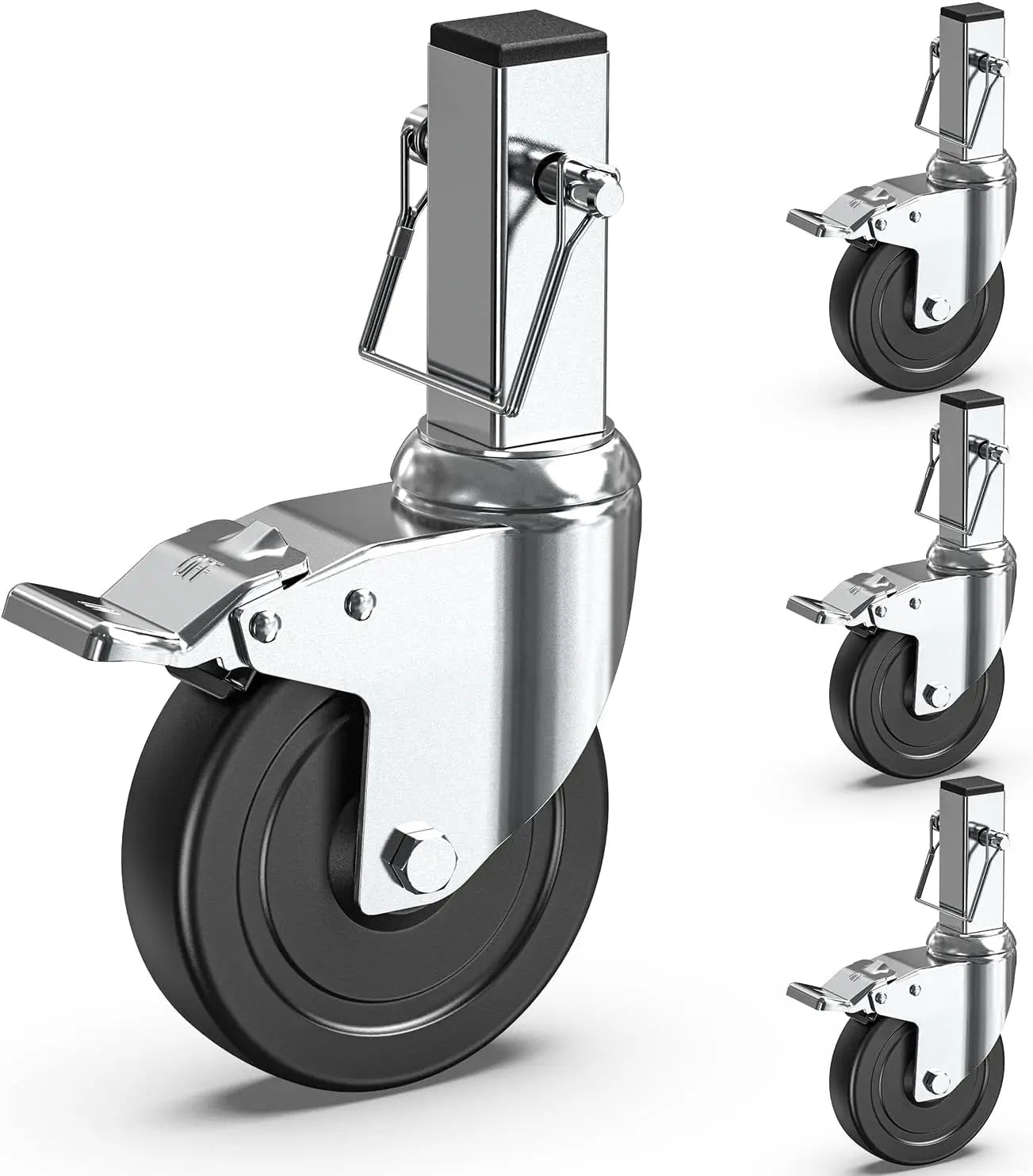

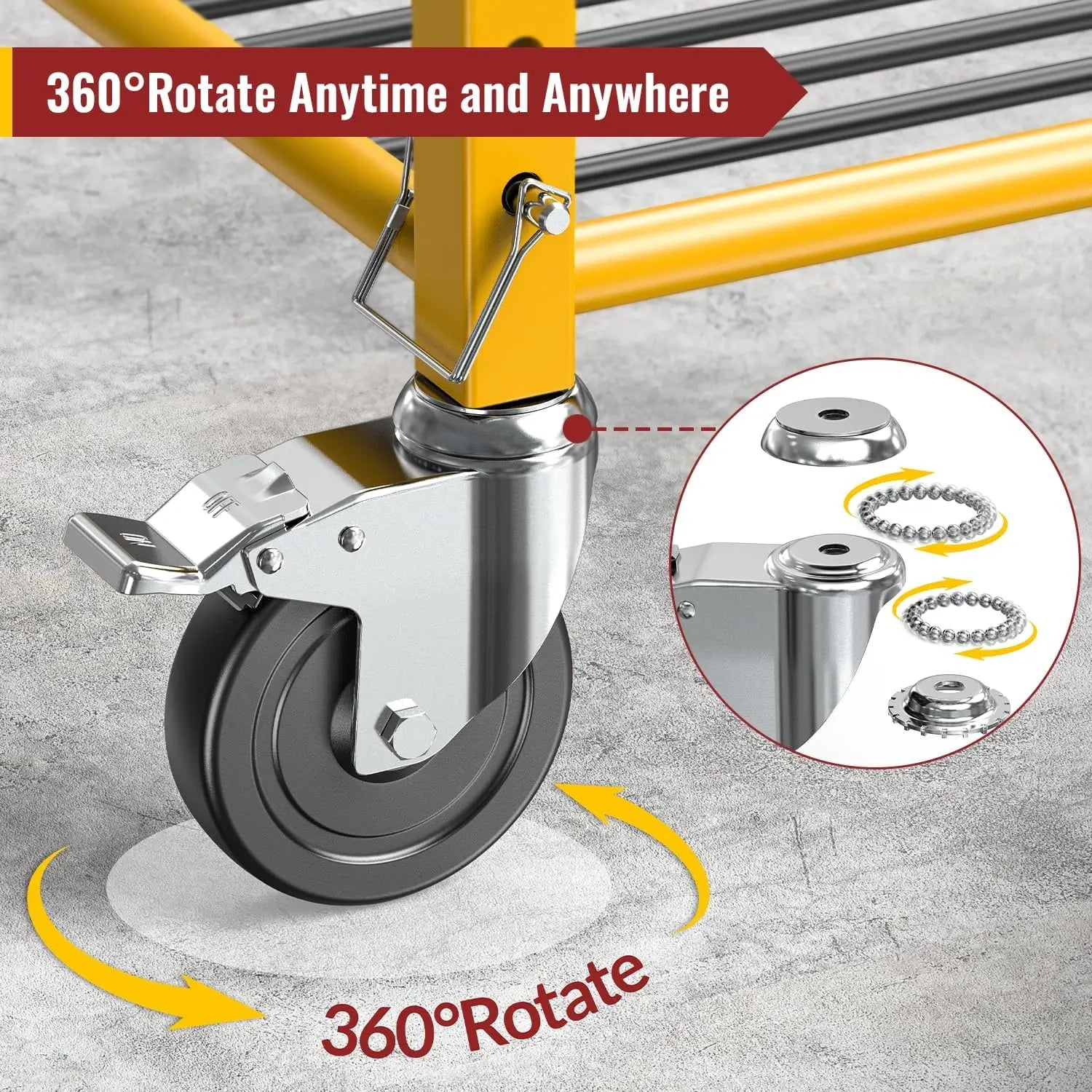

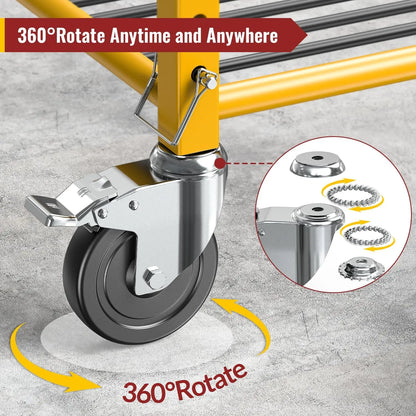

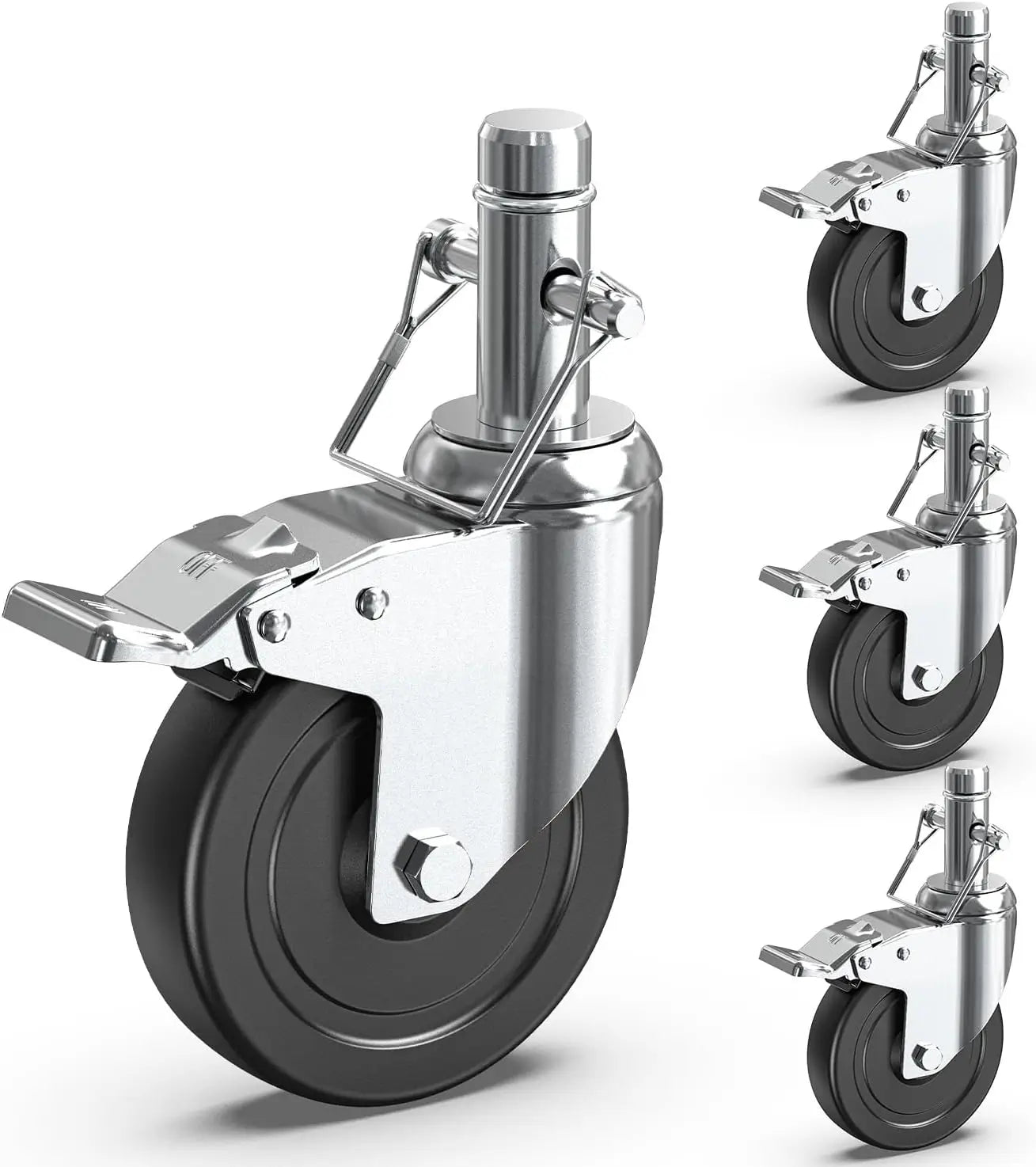

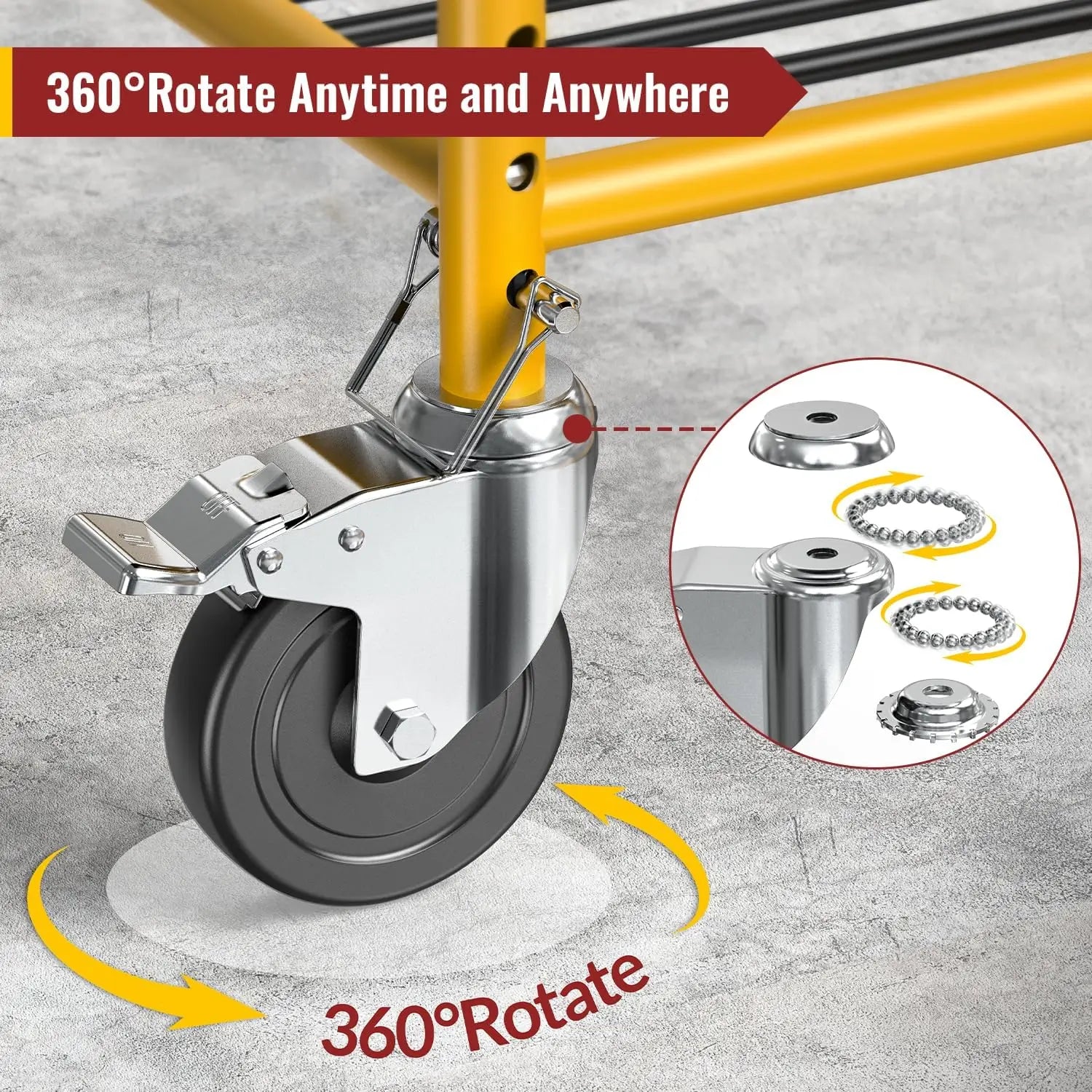

Each set includes four heavy-duty scaffold casters with reinforced steel brackets and durable TPR wheels. The dual-brake mechanism locks both the wheel and swivel simultaneously, ensuring safe positioning while working at height.

Dual-Brake System for Maximum Safety

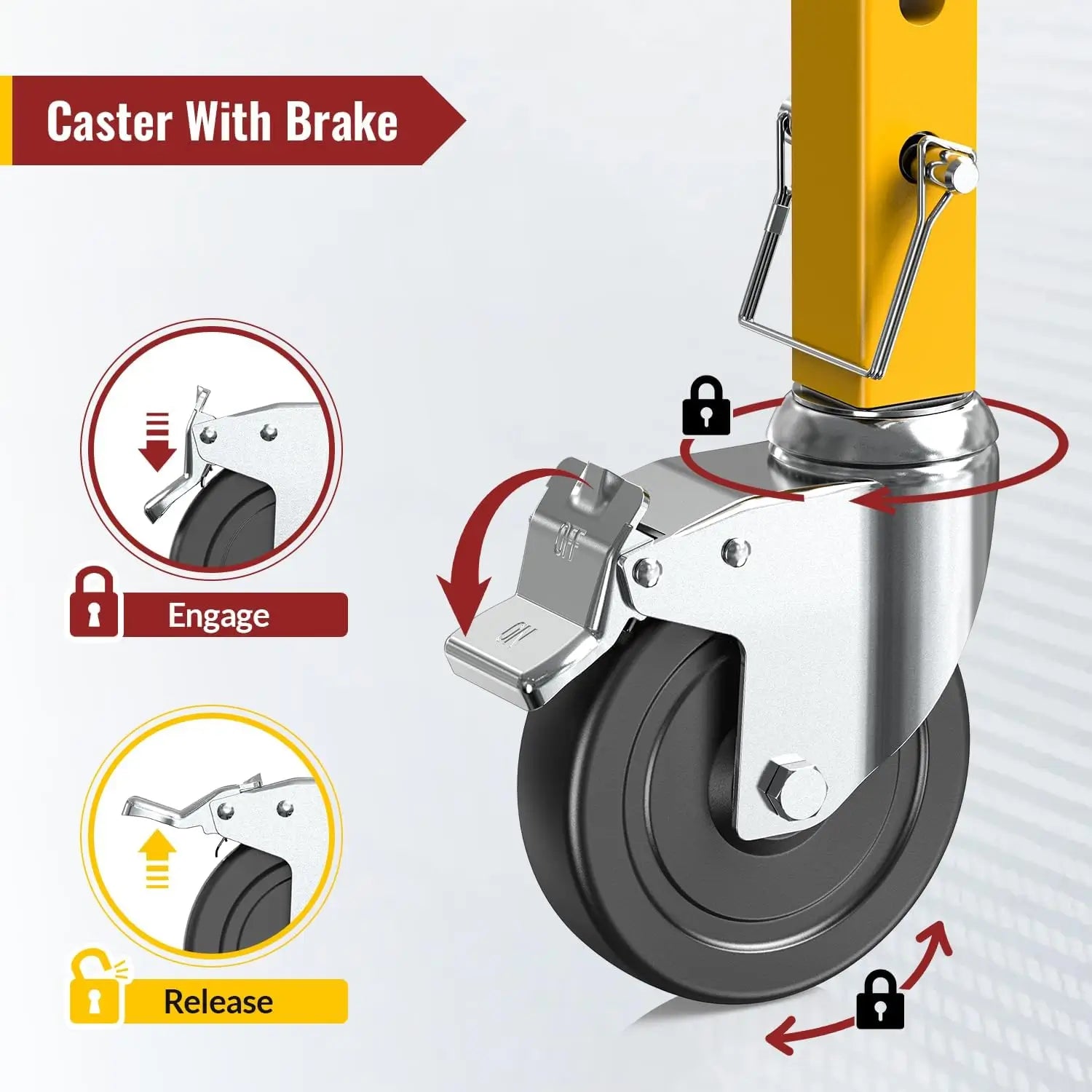

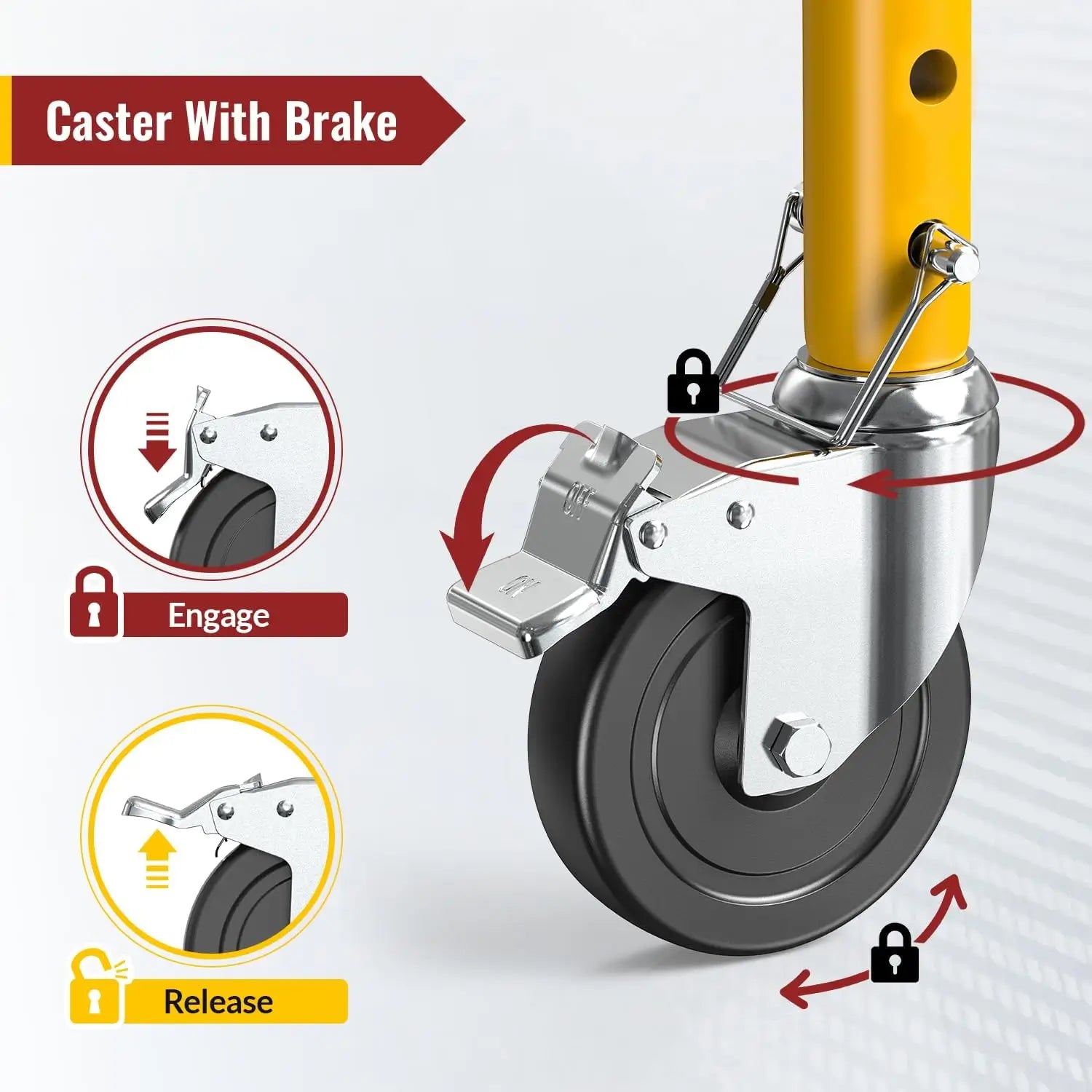

Safety is essential when working on scaffolding. These scaffold caster wheels with dual brake lock both the wheel rotation and the swivel head to prevent unwanted movement.

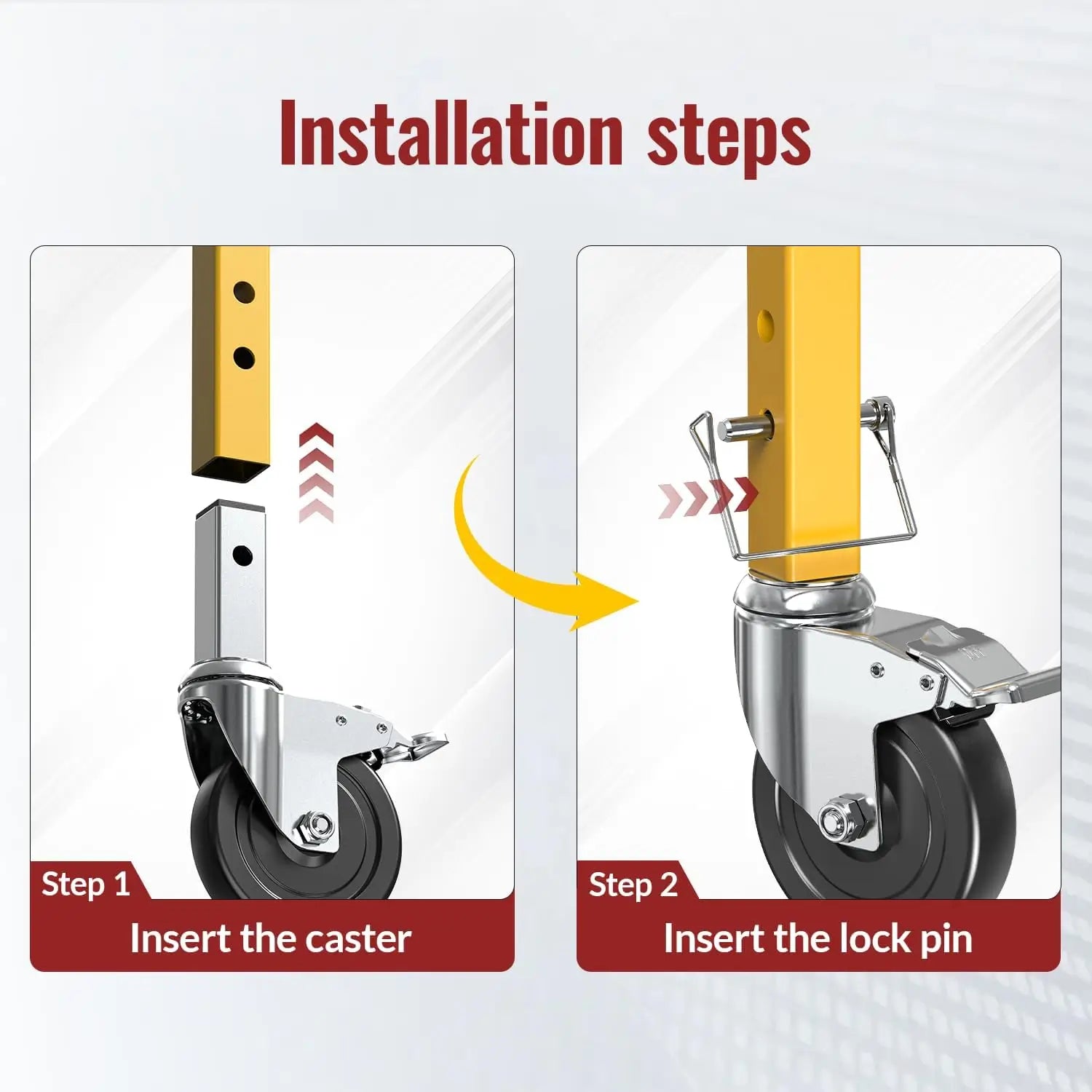

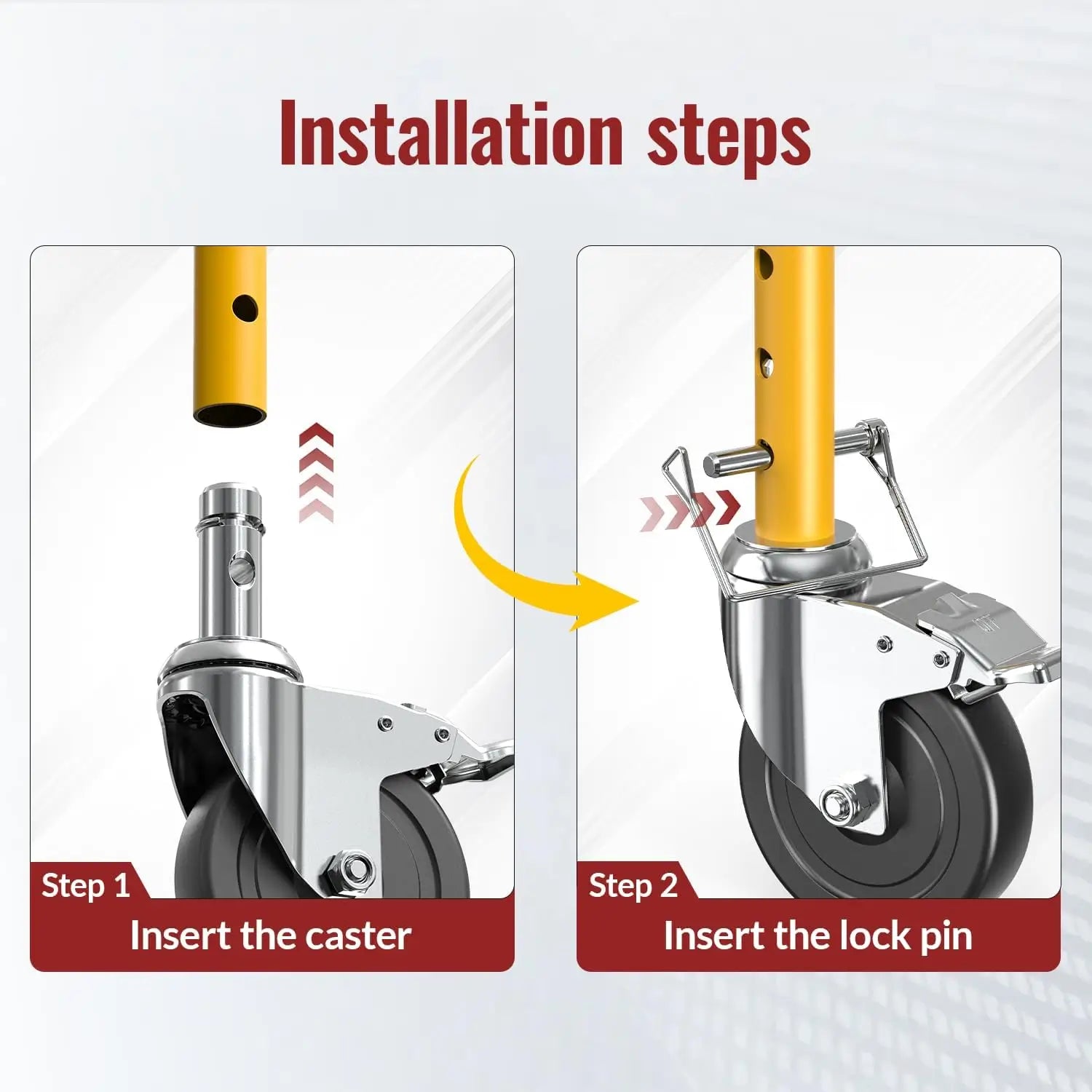

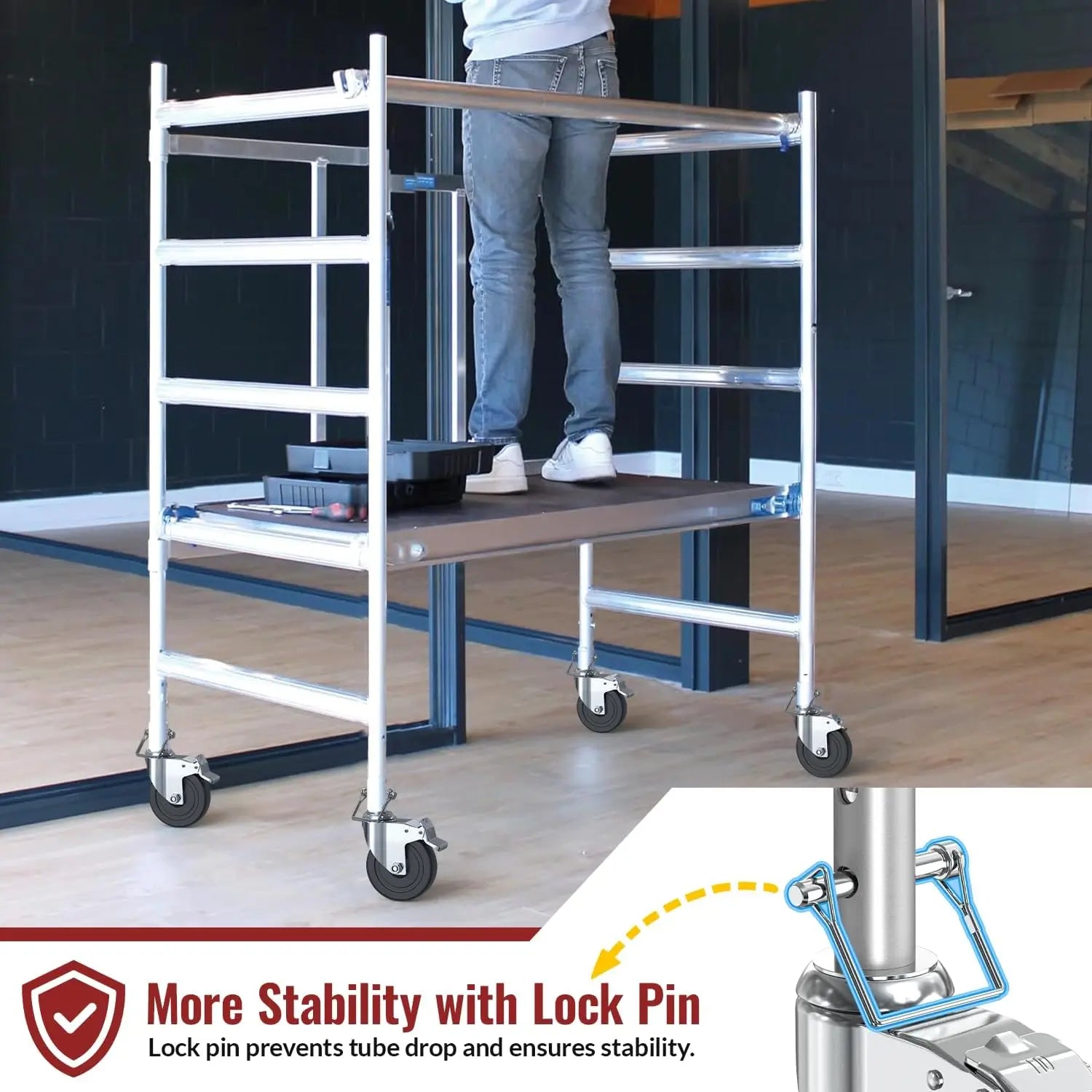

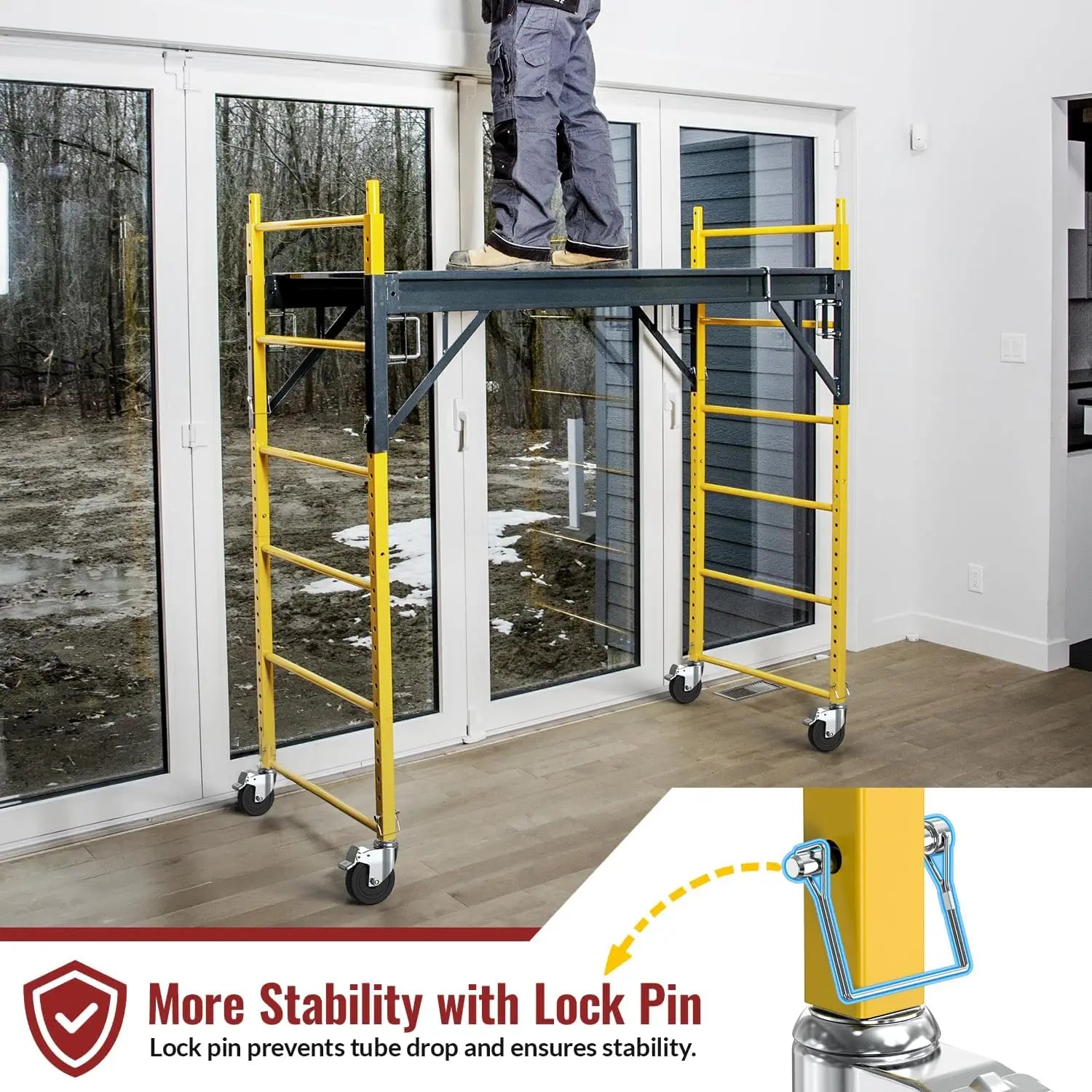

Each caster includes a locking pin system that prevents the scaffold tube from loosening or slipping during operation, providing additional stability and peace of mind for workers.

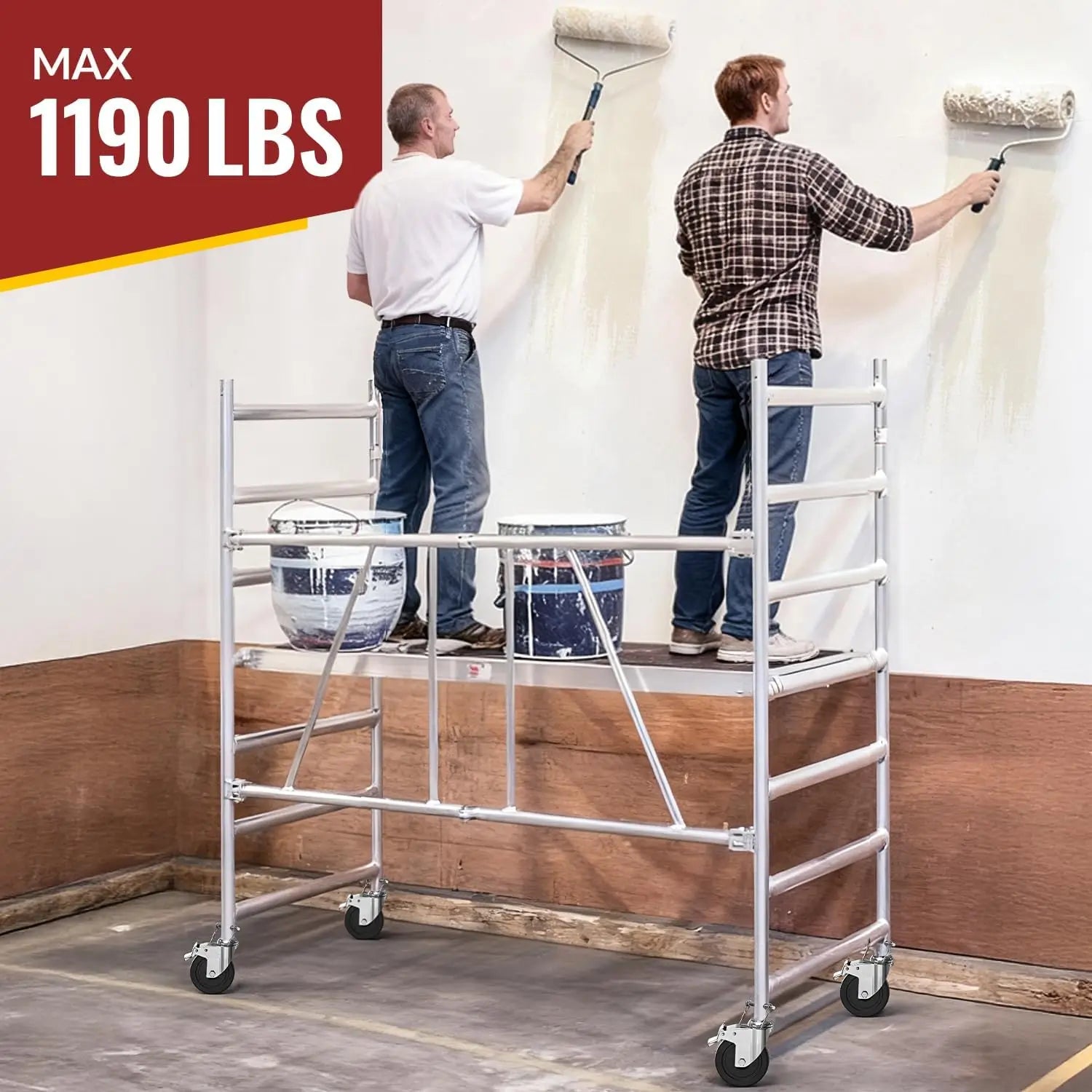

Heavy Duty Load Capacity

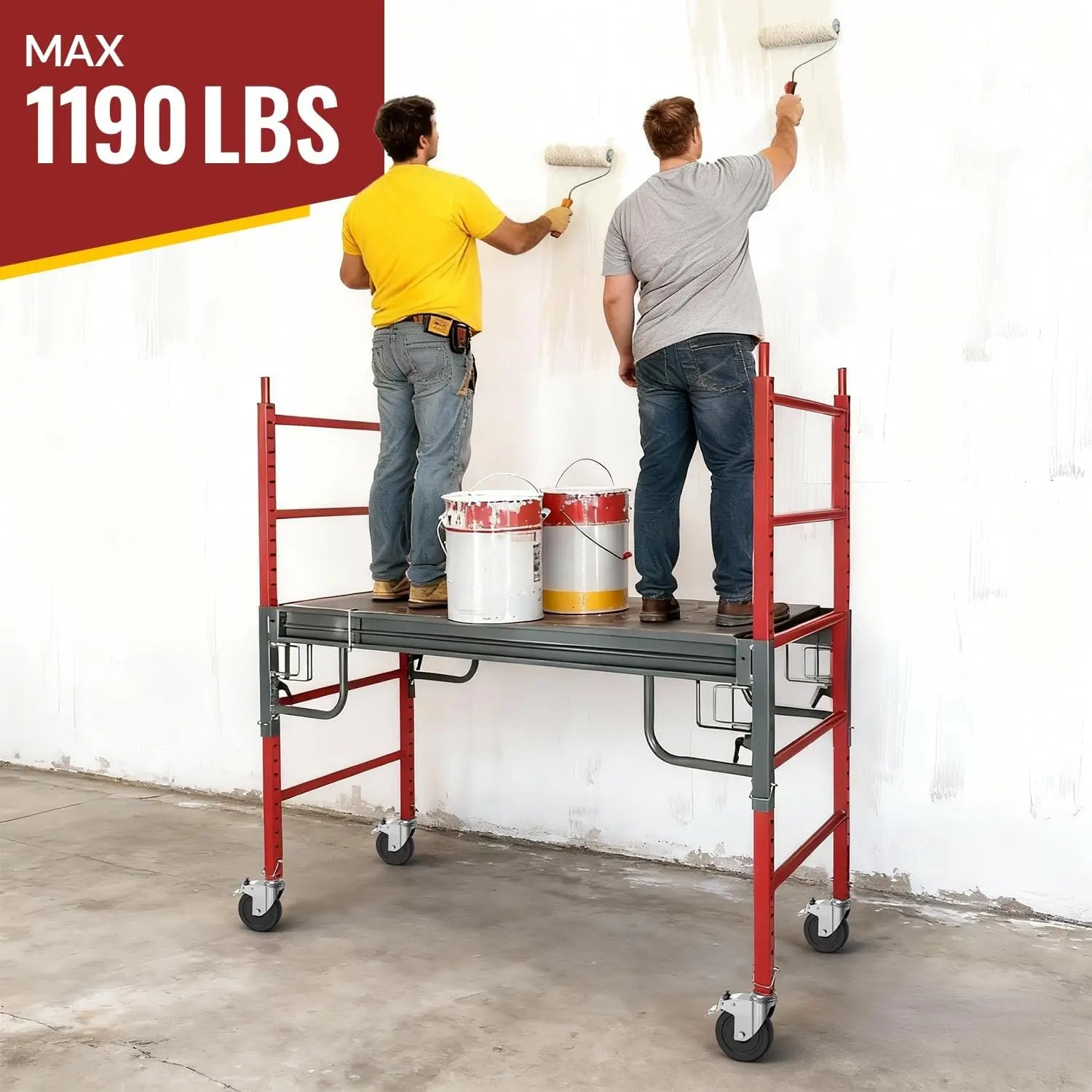

Each caster supports up to 400 lbs, and the full set of four casters supports up to 1,190 lbs.

The reinforced steel bracket combined with a PP core and thermoplastic rubber (TPR) wheel ensures long-lasting durability while protecting floors from scratches.

Compatible with Common Scaffold Tube Sizes

Two stem types are available to match different scaffold frame designs:

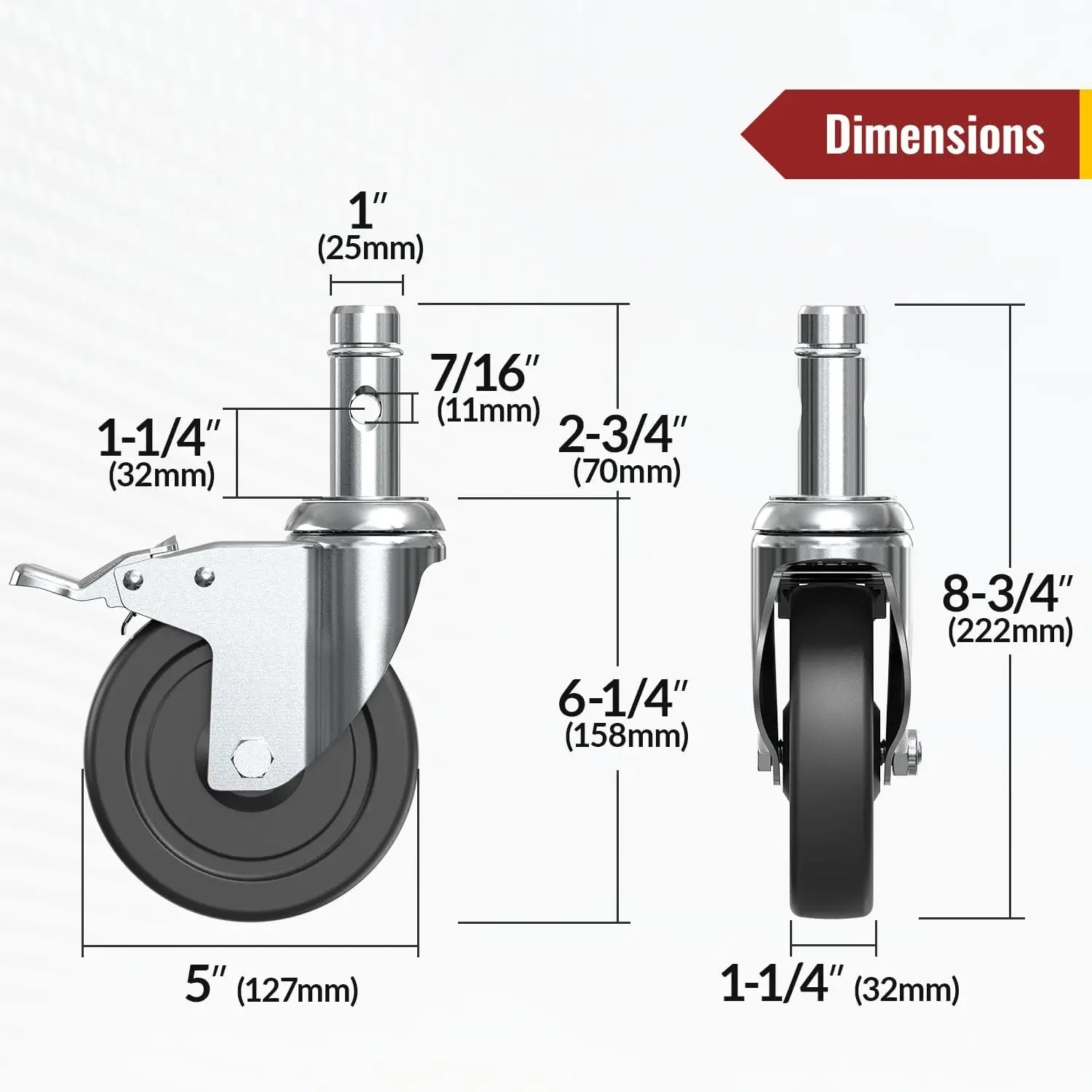

• 1" Round Stem
  Fits 1" to 1-3/16" round scaffold tubes
  Stem height: 2-3/4"

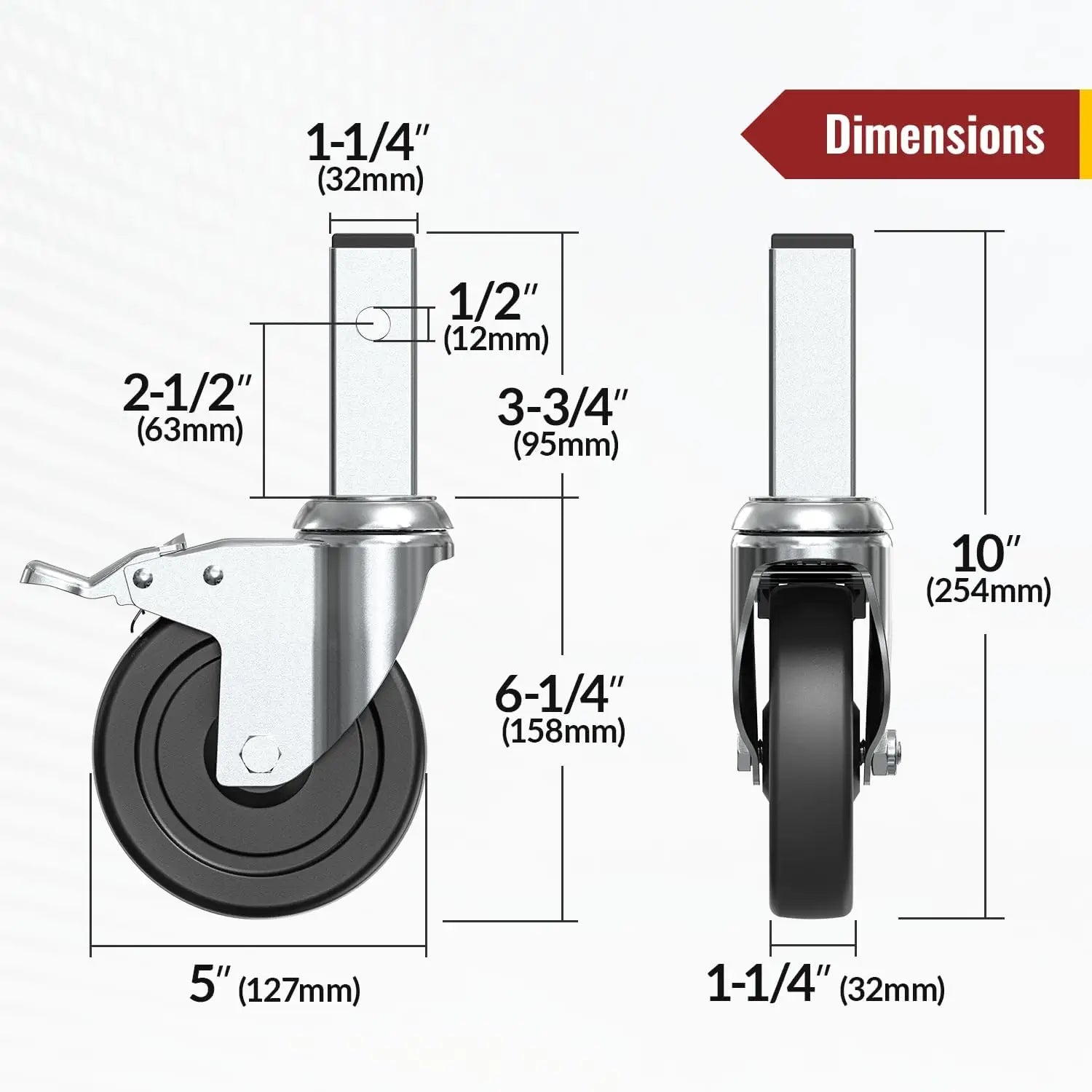

• 1-1/4" Square Stem
  Fits 1-1/4" to 1-3/8" square scaffold tubes
  Stem height: 3-3/4"

Please confirm your scaffold tubing size before ordering to ensure proper installation.

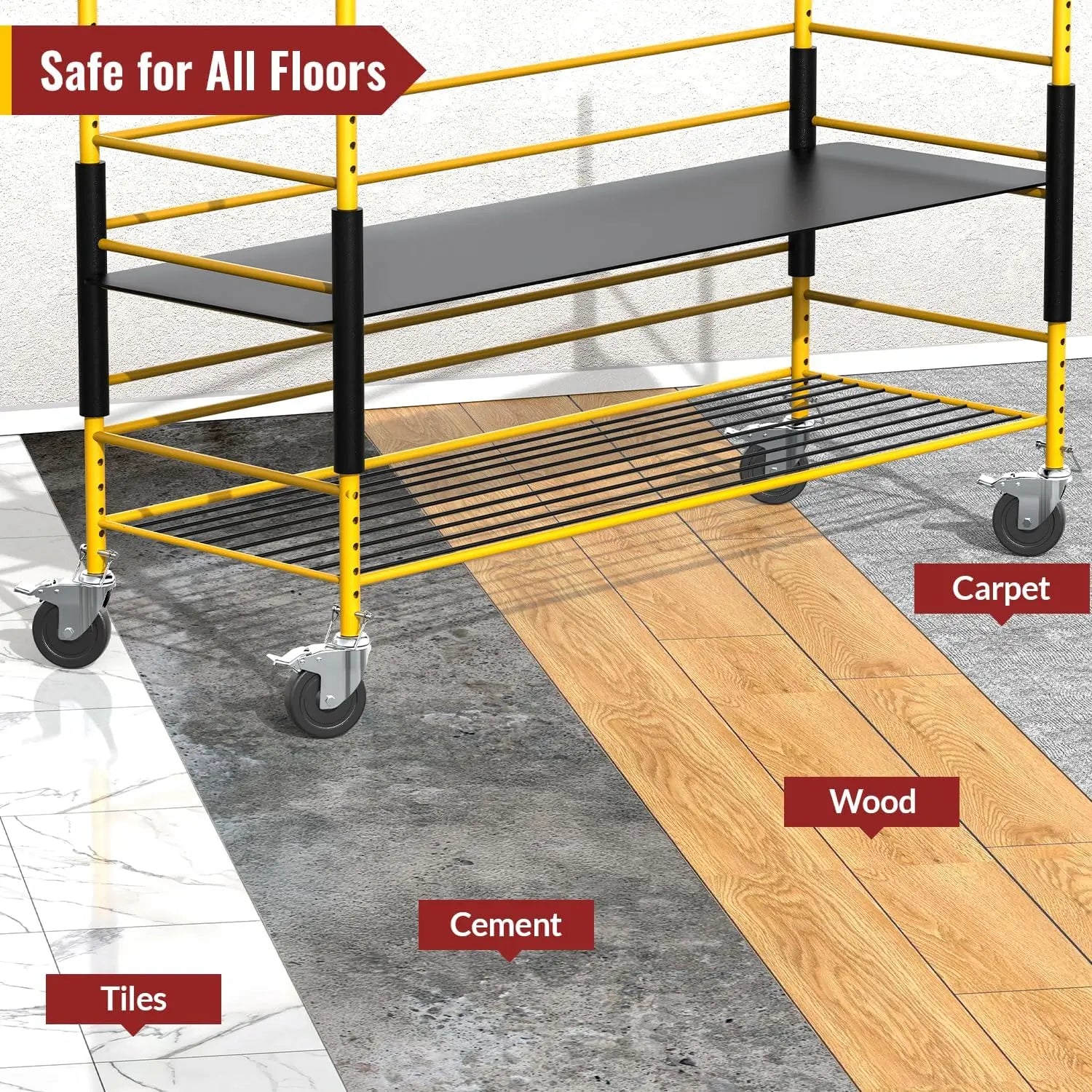

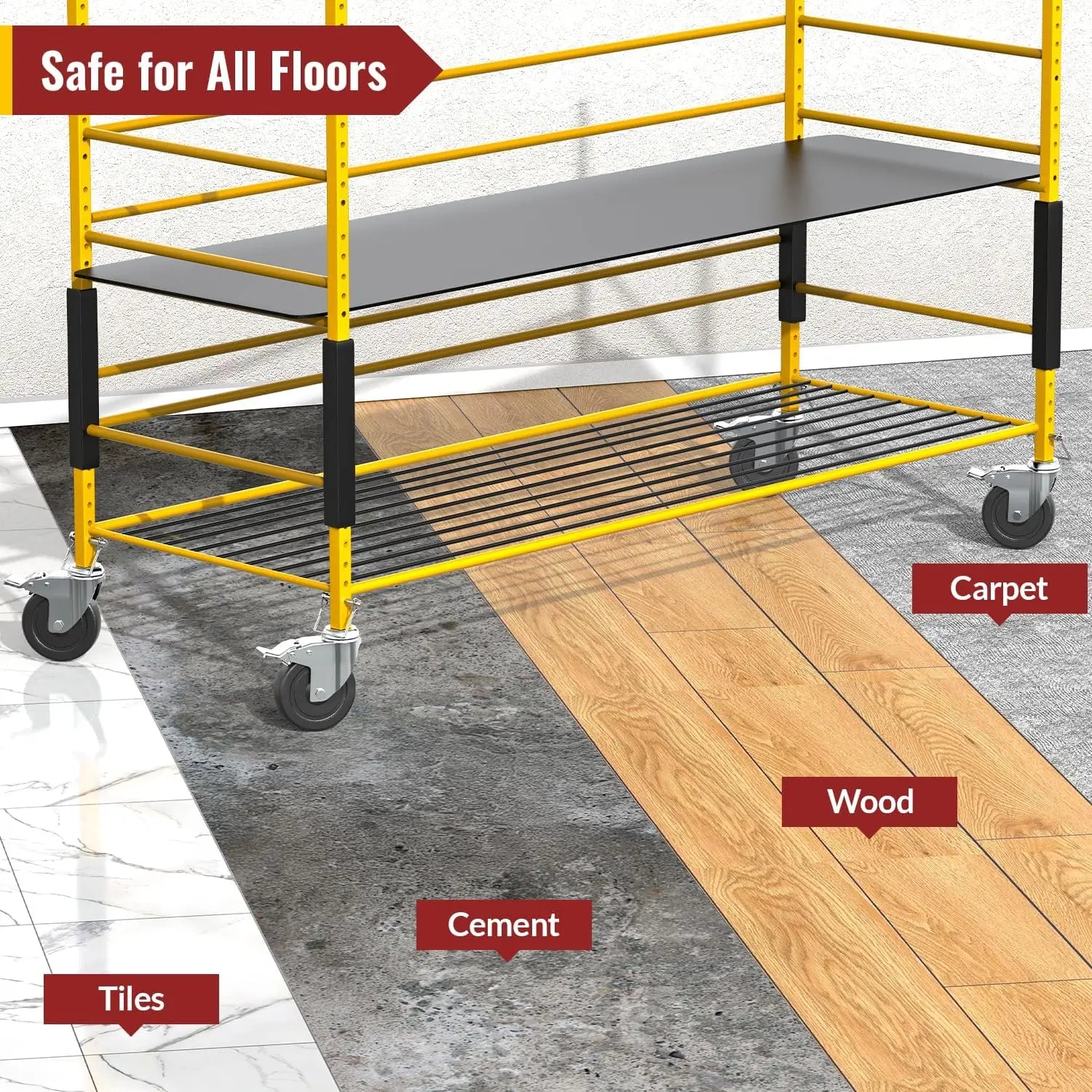

Smooth Rolling on Multiple Floor Types

The TPR caster wheels roll smoothly across a wide range of surfaces, including:

• Concrete floors
• Tile
• Wood flooring
• Industrial warehouse surfaces
• Carpet

They provide excellent floor protection while maintaining strong load capacity.

Frequently Asked Questions

Q1: What size caster wheels are used on scaffolding?

Most mobile scaffolding systems use 5 inch or larger scaffold casters to provide stable mobility and adequate load capacity for workers and tools.

Q2: Do scaffold casters need brakes?

Yes. Scaffold casters with dual brake systems lock both the wheel and swivel to prevent movement, ensuring worker safety when the scaffold is stationary.

Q3: What is the load capacity of scaffold caster wheels?

This set supports up to 1,190 lbs per set of four, making it suitable for most mobile scaffolding systems used in construction and maintenance.

Q4: How do I choose the correct scaffold caster stem?

You must match the caster stem with the scaffold tube type:

• Round tubes → Round stem
• Square tubes → Square stem

Always measure the tube diameter before purchasing.
