5 Inch Plate Casters with Dual Lock Brake – Heavy Duty 1600lb Swivel Wheels (Set of 4)

$32.99 USD
Color

Product highlights

5 inches

Wheel diameter

360° swivel

Casters function

Fully lockable pedal brake

Brake system

635 kg

Load Capacity

3.7" x 2.5"

Plate size

2.82" x 1.72"

Hole Spacing

0.47" x 0.31"

Hole size

1.22"

Wheel tread width

6.03"

Overall Height
Out of stock
📦×4

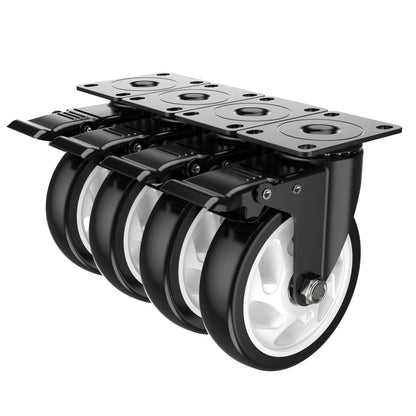

Sold as a set of 4
Order "1" = 4 casters · Packaged as a set
Bulk pricing available

Related Products

Ships within 3-7 business days.

3-Year Warranty

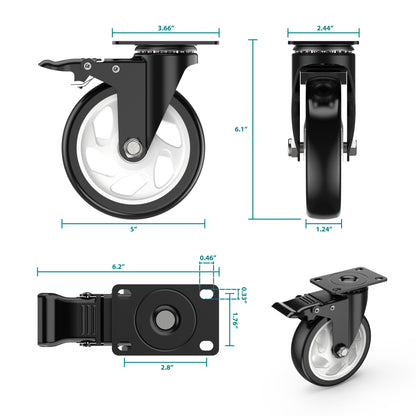

Technical Specification

Dimensions
Top Plate Size 3.7 in x 2.5 in
Hole Size 0.47 in x 0.31 in
Hole Spacing 2.82 in x 1.72 in
Wheel Tread Diameter 5 in
Wheel Tread Width 1.22 in
Overall Height 6.03 in
Load Capacity (set of 4) 635 kg
Features
Quantity 4

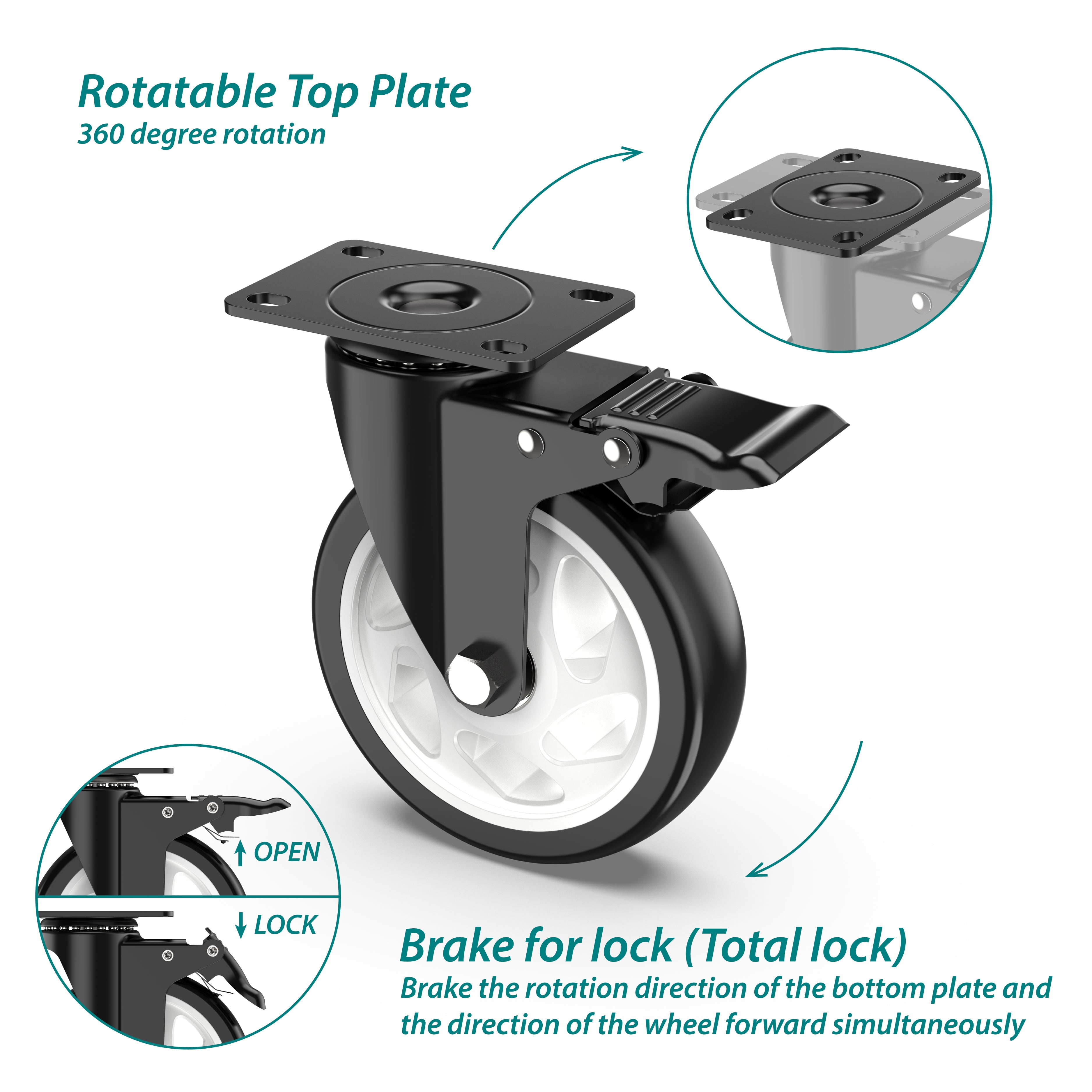

Casters Function swivel
Swivel Lock yes
Brake Type pedal brake
Wheel Tread Material PP

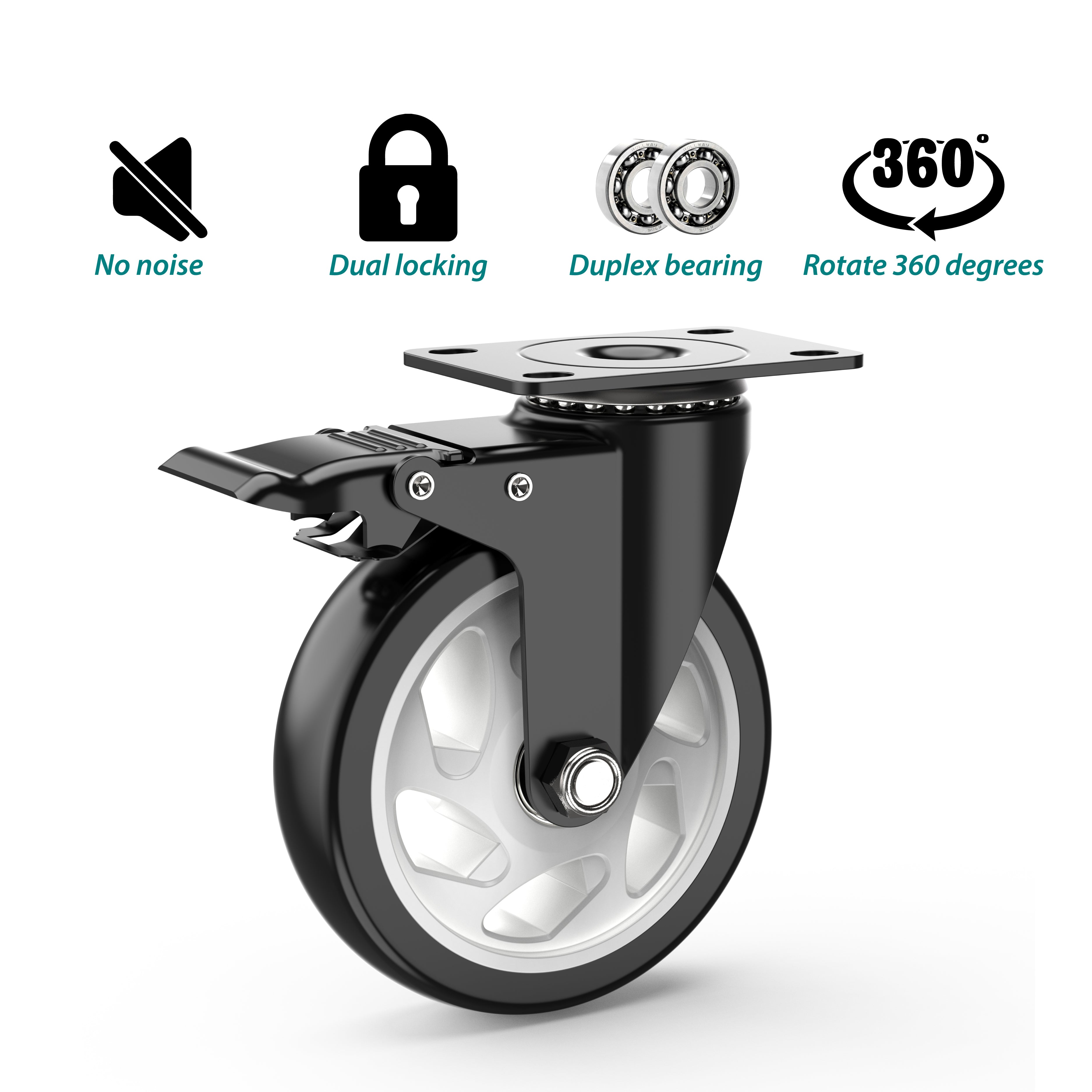

Bearing Type double sealed ball bearings

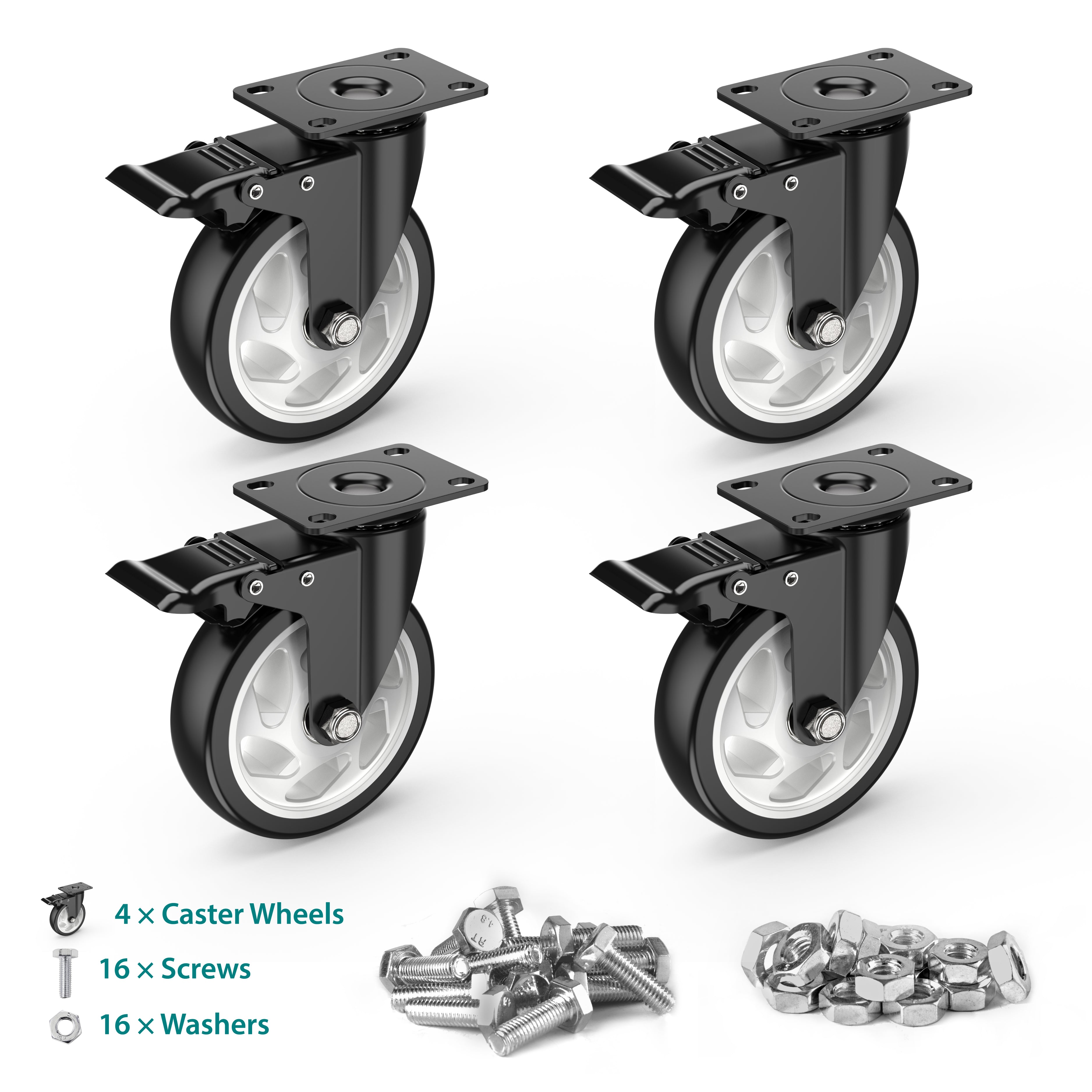

Accessories washers, bolts, split washers, nuts

Where These Casters Are Used

Application

  • Heavy-duty warehouse carts
  • Large tool carts
  • Manufacturing equipment
  • Machinery platforms
  • Industrial storage racks
About These Casters

Maximum Strength. Maximum Mobility.

Our 5-inch plate casters are built for demanding industrial environments where strength, stability, and smooth rolling performance are critical. Designed for heavy-duty carts and equipment that move daily under load.

  • ✔ High load capacity for industrial applications
  • ✔ Reinforced steel mounting plate for added stability
  • ✔ Smooth swivel action under heavy weight
  • ✔ Brake option available for secure positioning
  • ✔ Ships from U.S. warehouses

Why Choose 5 Inch Plate Casters for Heavy Equipment?

Larger wheels distribute weight more efficiently and reduce push effort. If your equipment is heavily loaded or moved frequently, upgrading to 5-inch casters improves both performance and operator safety.

  • Rolls easier under heavy loads
  • Performs better on expansion joints and uneven warehouse floors
  • Improves maneuverability for large carts
  • Reduces strain during frequent movement

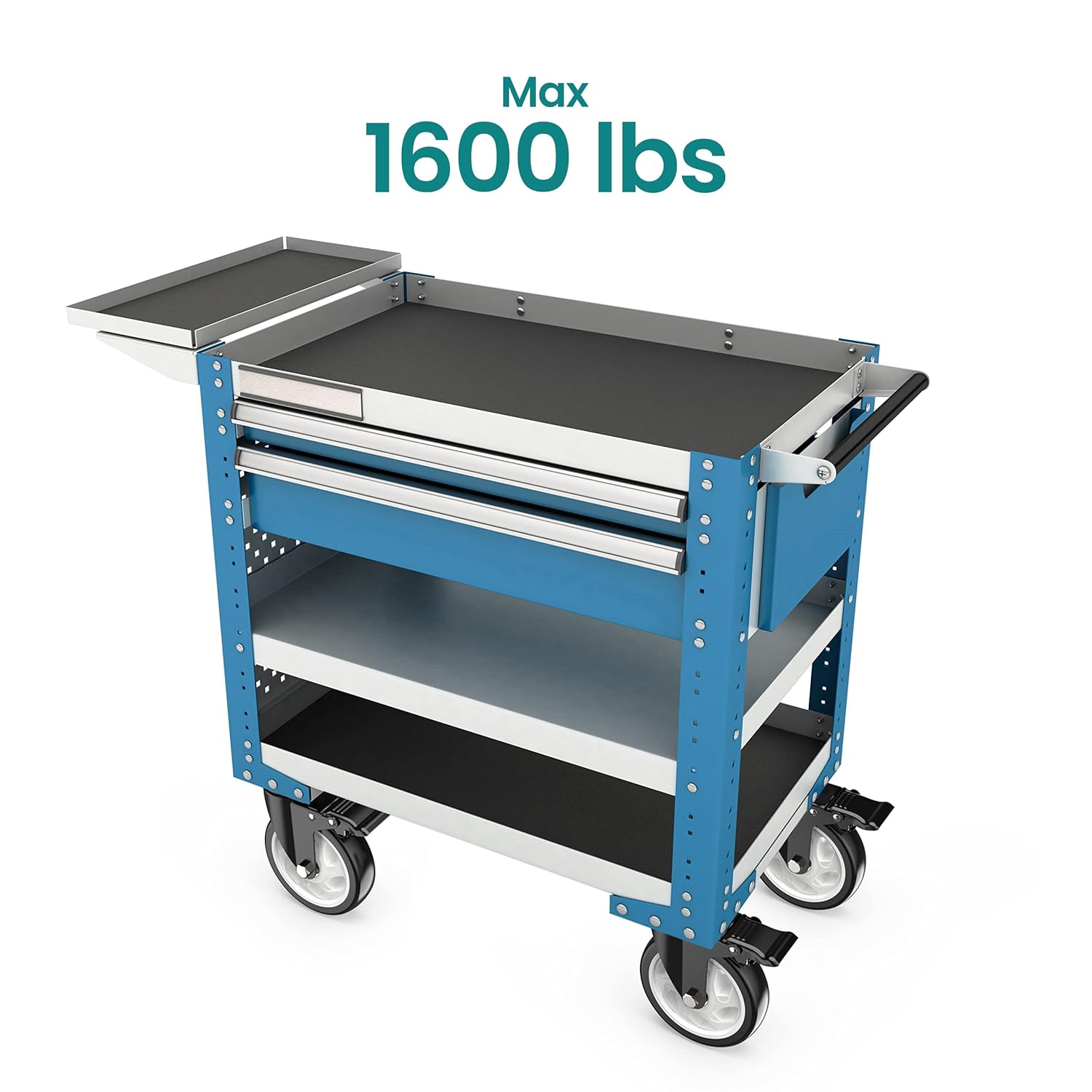

1600lb Load Capacity – Built for Daily Industrial Use

Designed for continuous operation in warehouses, workshops, and production environments. The durable bracket construction and reliable swivel mechanism ensure consistent performance over time.

Bulk Orders & Fast Shipping

In stock and ready to ship. Ideal for repeat industrial buyers and B2B orders. Contact us for volume pricing on larger quantities.

Common Questions

Frequently Asked Questions

How much weight can 5 inch plate casters support?

5-inch casters are typically used for medium to heavy-duty equipment. Please refer to the product specifications above for exact load ratings.

Do larger casters roll more easily?

Yes. Larger wheels reduce rolling resistance and distribute weight more effectively, especially under heavier loads.

Are brake options available?

Yes. Select the brake option variant to secure your equipment when stationary.

Key Features

5-inch Heavy-duty plate caster wheel

Large 5-inch wheel diameter significantly reduces rolling resistance under heavy loads. These heavy-duty casters are engineered for warehouse carts, machinery platforms, and industrial equipment that require reliable daily movement. With a total load capacity of 800+ lbs (set of 4), they deliver enhanced stability and smoother mobility across concrete and expansion joints. Reinforced steel brackets and double-sealed bearings extend service life in demanding environments. Available in plate mount configurations with brake options for added control and safety.
