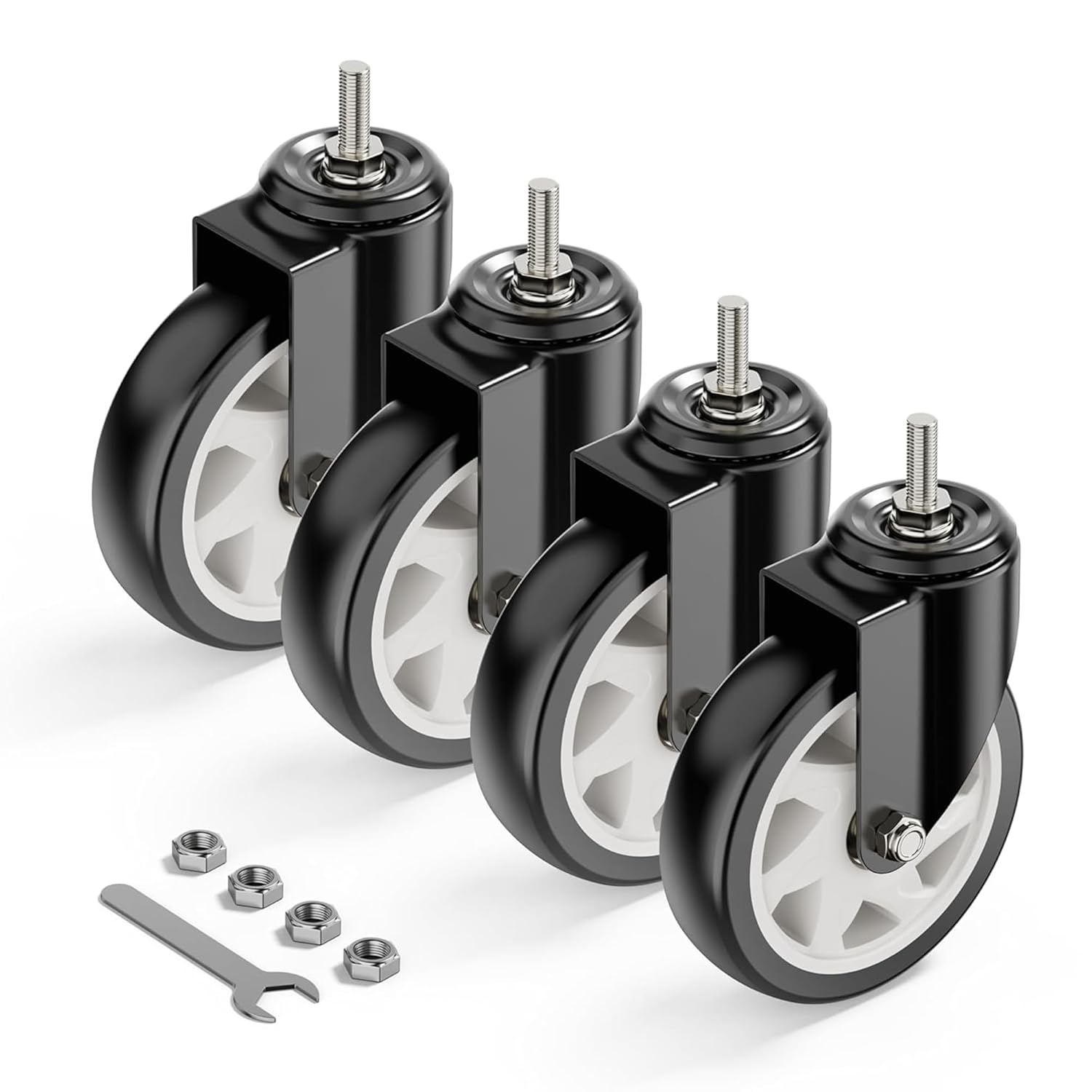

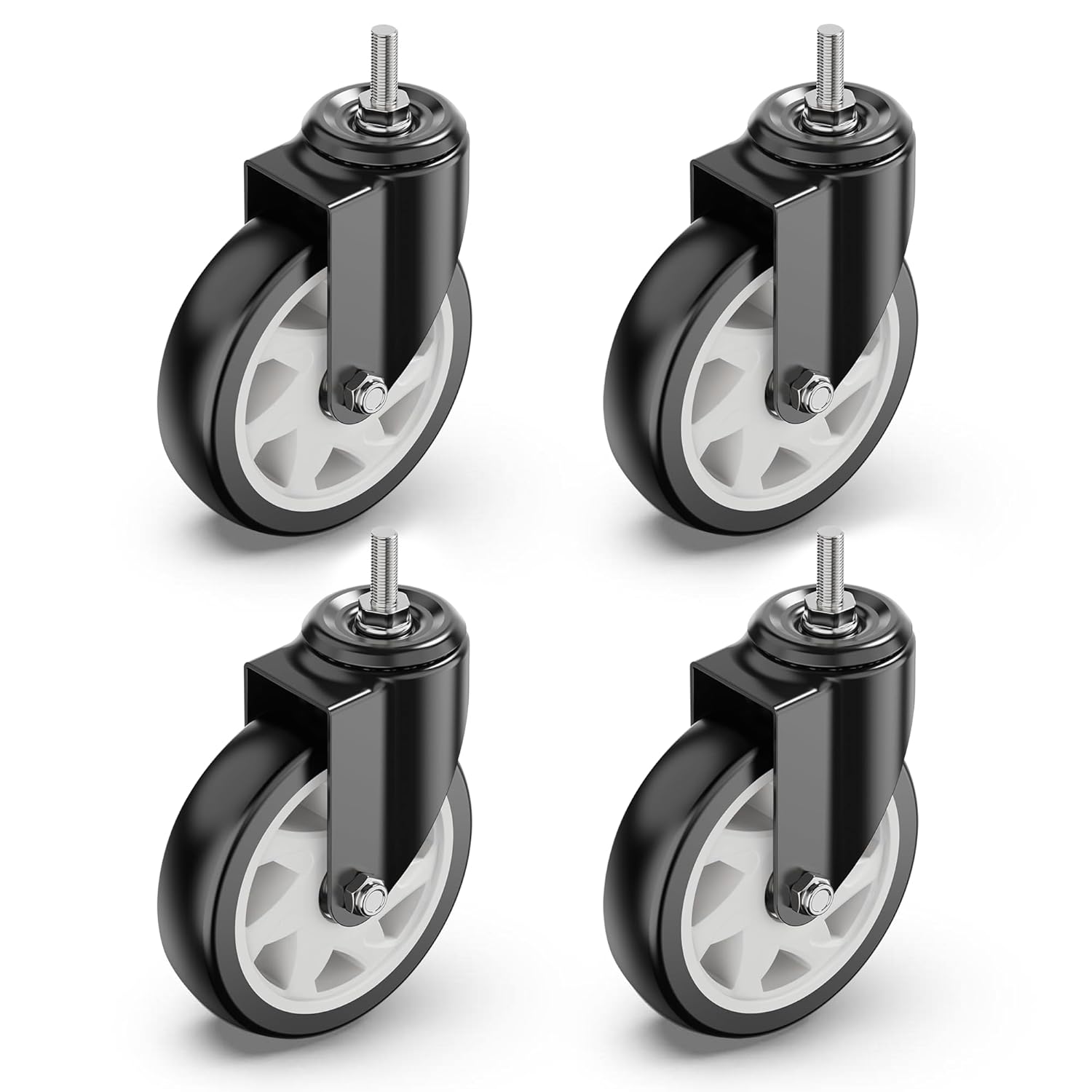

5 in Stem Casters Black without Brake 3/8" -16 x 1"
Available:In Stock
- Quantity: 4
- Swivel: Yes
- Wheel Diameter: 4.92in (125 mm)
- Overall Height: 6.1in (155 mm)
- Stem Size: 3/8'' -16 x 1''
- Load Capacity: 1,000 lbs (450 kg)
- Wheel Bearing: Double Sealed Ball Bearings
$28.99
Specification

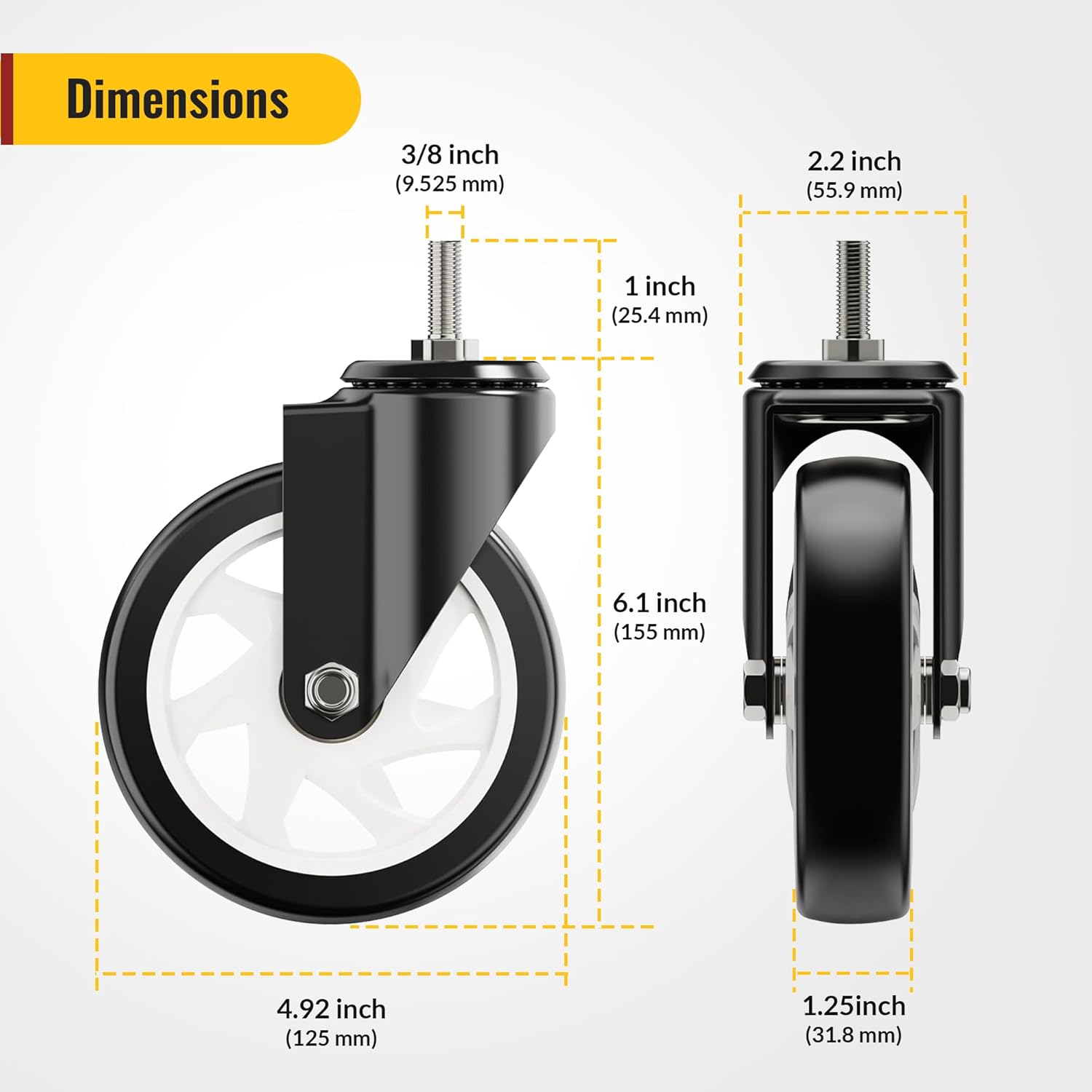

Dimensions
Stem Size 3/8'' -16 x 1''
Wheel Tread Diameter 4.92in (125 mm)
Wheel Tread Width 1.25in (31.75 mm)
Overall Height 6.1in (155 mm)

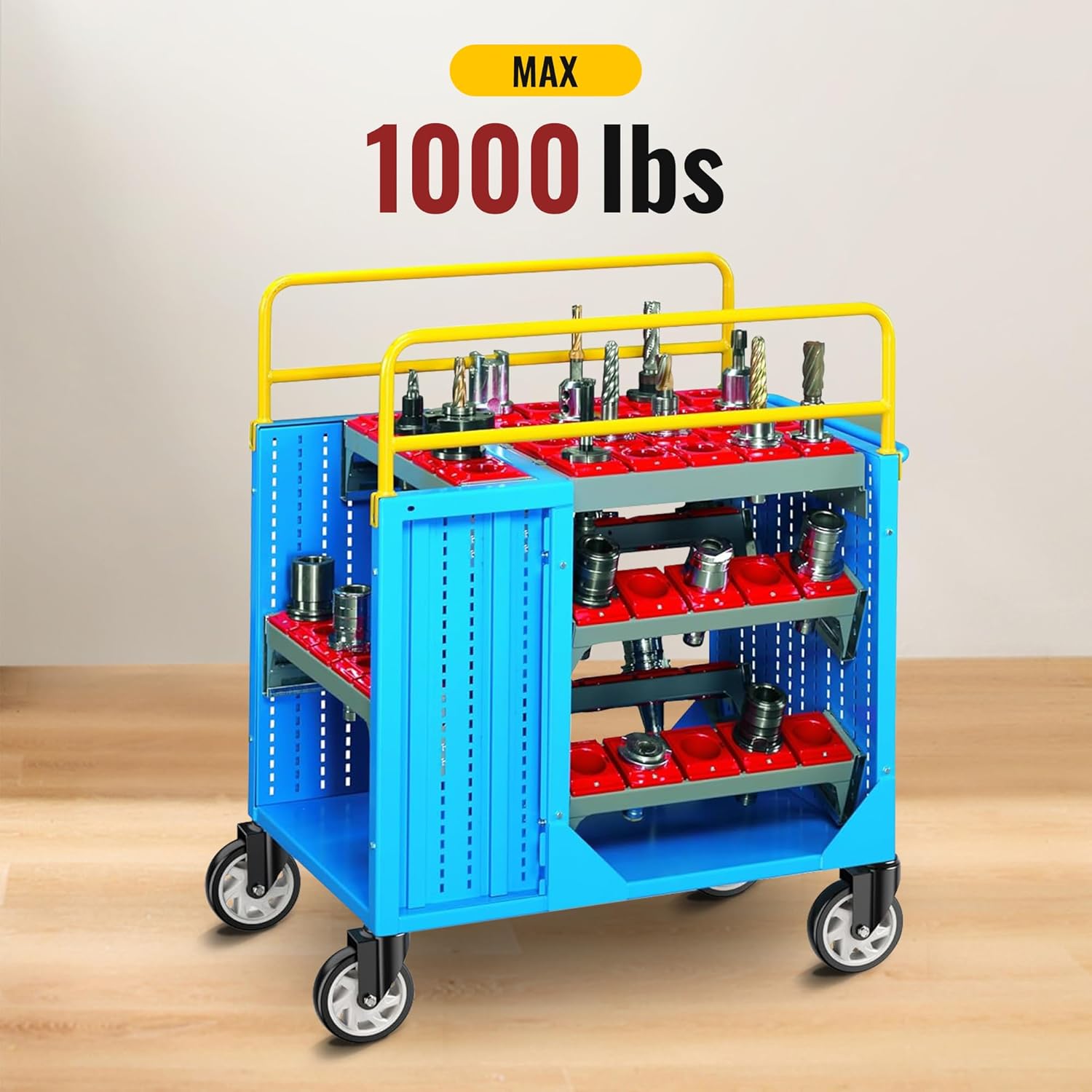

Load Capacity (set of 4) 1,000 lbs (450 kg)
Features
Quantity 4
Casters Function swivel
Wheel Tread Material PVC
Bearing Type double sealed ball bearings
Accessories nuts, spanner
workbench casters

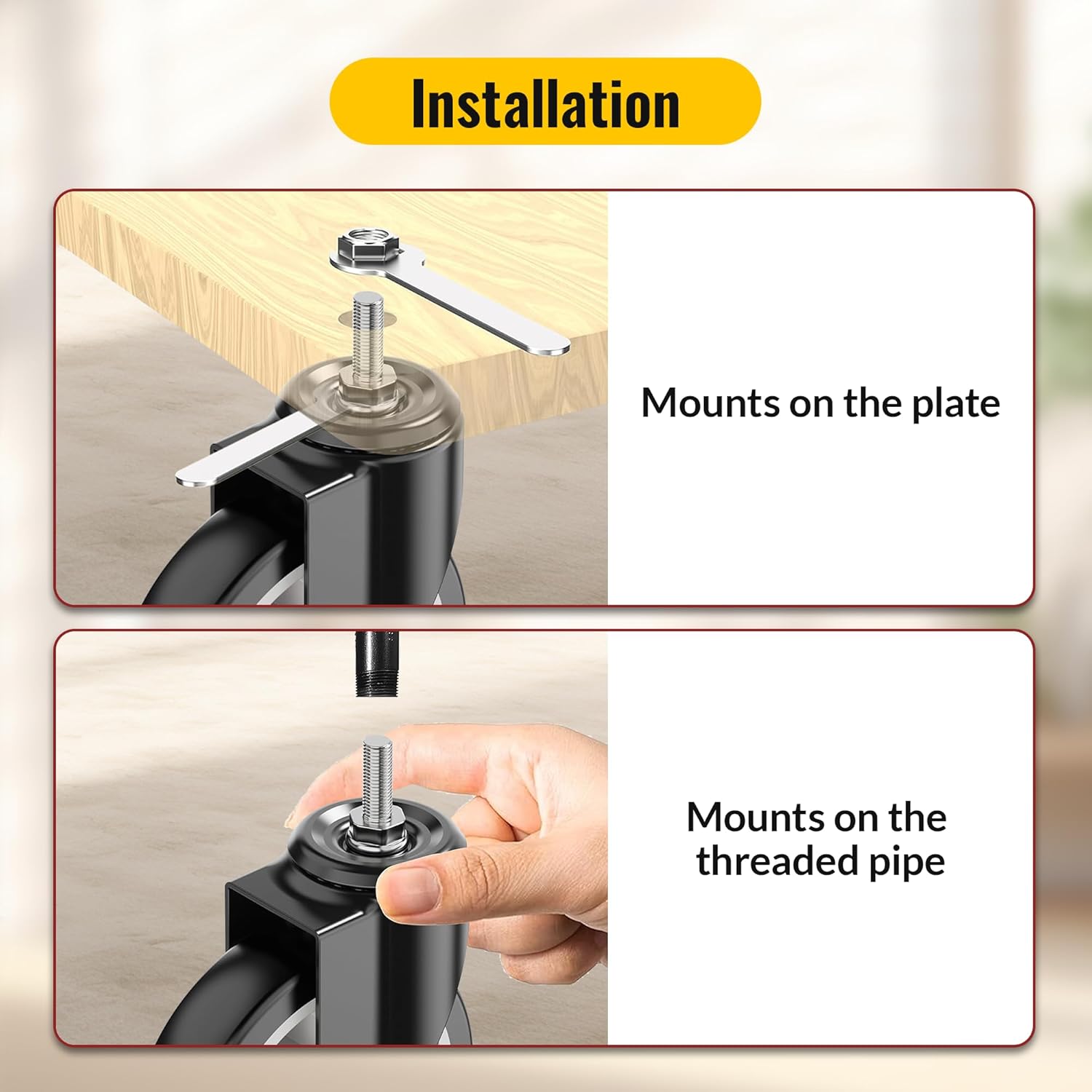

Large wheel diameter reduces rolling effort. These heavy-duty 3-inch or larger casters are designed for demanding workbench, tool cabinet, or industrial equipment applications. They provide a total load capacity of 600+ lbs (Sets of 4), ensuring stability and smooth mobility under heavy loads. Double-sealed bearings and reinforced materials extend service life. Compatible with both stem and plate installations.
Application
Furniture Movers
Kitchen Equipment
Warehouse Trucks
Material Handling
Bakery equipment
Plant Stands
Toy Storage
Retail Shelving
Toolboxes
Automotive Equipment
Equipment Carts
Machinery Dollies
Shopping Carts
Office Chair
Gate Wheels
Lug carts
Industry
Distribution
Cargo Containers
Retail Shelving
