The Foundation of Industrial Mobility: Top Plate Casters

Top plate casters, often referred to as flat plate casters, represent the most fundamental and versatile mounting style in the industrial mobility world. They consist of a wheel or ball assembly permanently affixed to a flat metal plate. This plate allows for secure attachment to the underside of almost any object—from massive industrial carts and workbenches to mobile equipment—using four or more bolts. This simple yet robust design is why they are so widely adopted across countless industries.

While a quick glance might suggest all casters are the same, the true diversity lies in the functionality of the swivel section (or lack thereof) and the specialized mechanics built into the rig. Understanding the core types and their advanced variations is crucial to selecting a system that ensures safe, efficient, and long-lasting operation for your equipment.

Here is a comprehensive breakdown of the types of top plate casters, moving beyond the basics to include specialized configurations essential for modern industrial and commercial applications.

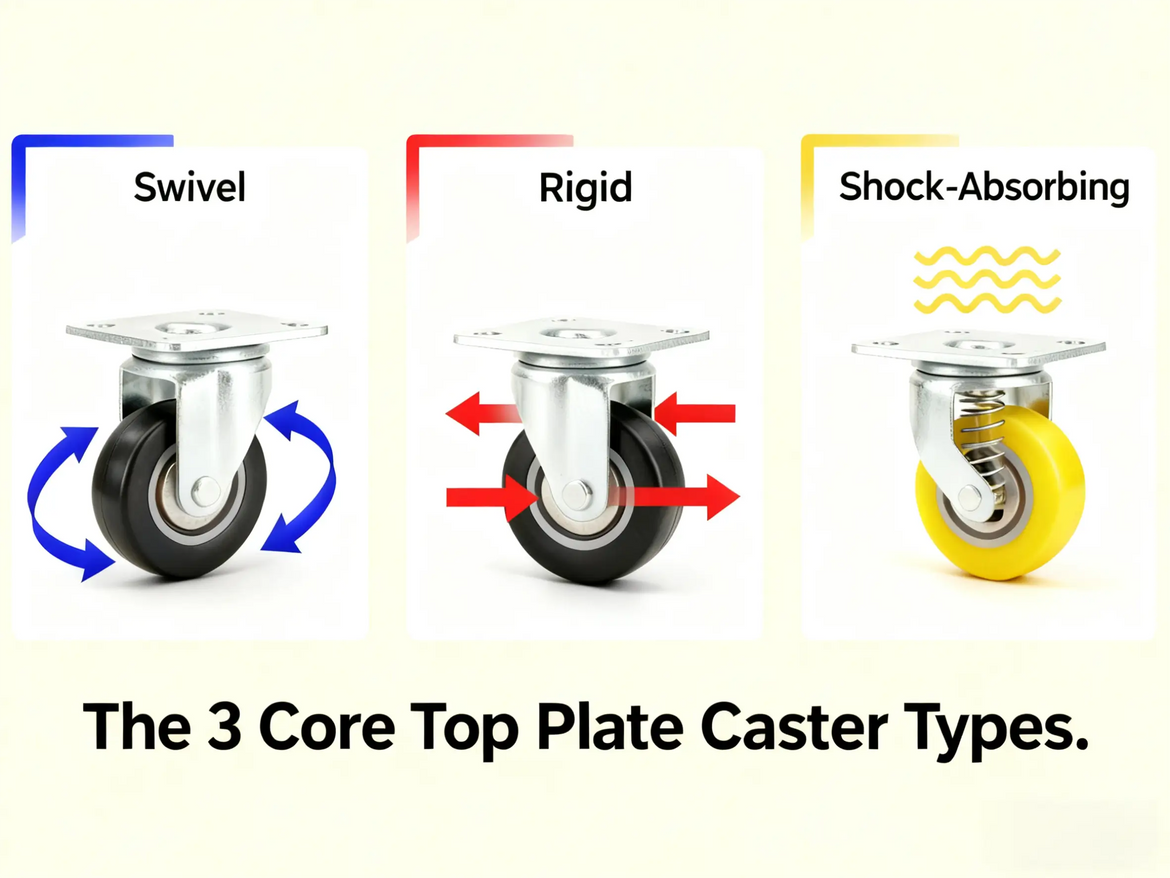

The Three Core Top Plate Caster Types

The caster industry traditionally classifies top plate casters based on their directional control mechanism.

Swivel Casters

Swivel casters are the champions of maneuverability. Defined by a raceway assembly (a bearing-filled structure between the plate and the fork), they allow the wheel to rotate 360 degrees relative to the mounting plate.

Application & Advantage: They are essential when your equipment needs to navigate tight corners, crowded assembly lines, or complex routing paths. Swivel casters provide the versatility needed for quick directional changes, maximizing maneuverability and reducing the effort required by the operator.

Essential Variation: Swivel with Brakes: For safety and stationary stability, swivel casters are frequently equipped with brakes. These range from simple side-lock brakes that only hold the wheel rotation, to more robust directional locks that prevent the swivel action, temporarily converting the caster into a rigid type for straight-line movement. Safety regulations often mandate the use of locking casters to prevent unintentional equipment movement.

Rigid Casters

Rigid casters are the direct opposite of swivel casters. The wheel fork is fixed in position, meaning the wheel will always travel in a single, straight line perpendicular to the mounting plate.

Application & Advantage: Rigid casters are crucial when stability and straight-line tracking are the priority. They prevent the equipment from drifting and provide critical control, especially in long hallways, along production tracks, or when handling very heavy, momentum-driven loads.

The Power Duo: In most four-caster systems, swivel casters are placed at the four corners for steering versatility. However, for large carts, a common configuration involves placing two rigid casters in the center or at the back and two swivel casters at the front. This combination provides the best balance of tracking precision (from the rigid pair) and steering capability (from the swivel pair). In some heavy-duty applications, a six-caster setup (four swivel, two rigid) is used for maximum load distribution and stability.

Shock-Absorbing (Spring-Loaded) Casters

Shock-absorbing casters, also known as spring-loaded casters, integrate a mechanical suspension system (usually a spring or elastomer) between the mounting plate and the wheel fork.

Application & Advantage: Their primary function is to dampen vibrations and mitigate the impact of shocks caused by moving over rough floors, cracked concrete, or debris. This is vital when transporting fragile, sensitive, or high-value equipment (such as laboratory instruments or computer servers) where jostling could cause damage. They also help to maintain wheel-to-floor contact, improving rolling performance and protecting the equipment's frame and the operator from physical strain.

Advanced and Specialized Top Plate Caster Variations

Beyond the three core types, modern industrial needs have driven the development of highly specialized top plate casters that enhance durability, reduce maintenance, and solve specific application challenges.

Maintenance-Free (Kingpinless) Casters

The kingpin is the main bolt or rivet holding the raceway assembly of a traditional swivel caster together. Under extreme stress, heat, or impact, this kingpin can loosen, bend, or fail, leading to caster replacement.

Kingpinless Casters eliminate this failure point by utilizing a vertically heat-treated, heavy-duty single ball-bearing raceway. The top plate and yoke are forged as integrated components, resulting in a design that is far more resistant to repeated swiveling, heavy side-loading, and shock. They are the preferred choice in harsh, high-impact environments like tow lines and continuous-use logistics.

Dual Wheel (Twin) Casters

Dual wheel casters feature two wheels mounted side-by-side within a single fork assembly.

Application & Advantage: The primary benefits include increased load capacity without needing an exponentially larger single wheel, and superior stability. By distributing the weight over two footprints, they offer better protection for certain floor types and often provide a lower overall profile (or height) than a single caster with equivalent load rating. They are frequently used in institutional settings and for moderate-duty equipment.

Differential Swivel Lead Casters

The swivel lead is the horizontal distance between the vertical axis of the swivel kingpin and the center axis of the wheel.

Differential Lead Casters (usually referred to simply as extended or shortened leads) are designed to adjust this distance to fine-tune steering and push/pull effort. An extended swivel lead makes the cart easier to turn and initiate movement (improving ergonomics), while a shortened swivel lead increases stability and is often used in specialized applications where the wheel must track very closely beneath the plate.

Key Selection Considerations for Top Plate Casters

Choosing the right type is only the first step. To ensure the performance, longevity, and safety of your equipment, you must factor in the surrounding variables:

Load Capacity: Always calculate the Dynamic Load Capacity (weight when moving) and apply a safety factor (typically adding 33% to the total anticipated load). Using casters rated for a collective capacity that exceeds the load is a crucial preventative measure against premature failure.

Wheel Material and Floor Type: The wheel material dictates performance and floor protection. For example, Polyurethane wheels offer high capacity and great durability, while rubber is preferred for noise reduction and traction. The wrong material can damage floors, increase rolling resistance, or fail in extreme temperatures or chemical environments.

Environmental Factors: Consider if the casters will be exposed to extreme heat (e.g., bakeries), moisture, rust, or corrosive chemicals. Stainless steel rigs or specific chemical-resistant wheel materials (like phenolic or nylon) may be mandatory for longevity.

Ergonomics and Noise: For environments where operators are pushing loads all day, selecting casters that minimize rolling resistance (like larger diameter wheels or extended lead casters) is vital to preventing fatigue and strain, thus improving Workplace Ergonomics. Similarly, choosing soft treads like polyurethane or rubber minimizes noise pollution.

By systematically evaluating the operational requirements and selecting the appropriate combination of swivel, rigid, and specialized top plate caster features, you can ensure a reliable, efficient, and safe mobile solution tailored to your exact needs.
