The Engineering of Suspension and Shock-Absorbing Casters

The Limits of Rigid Mobility

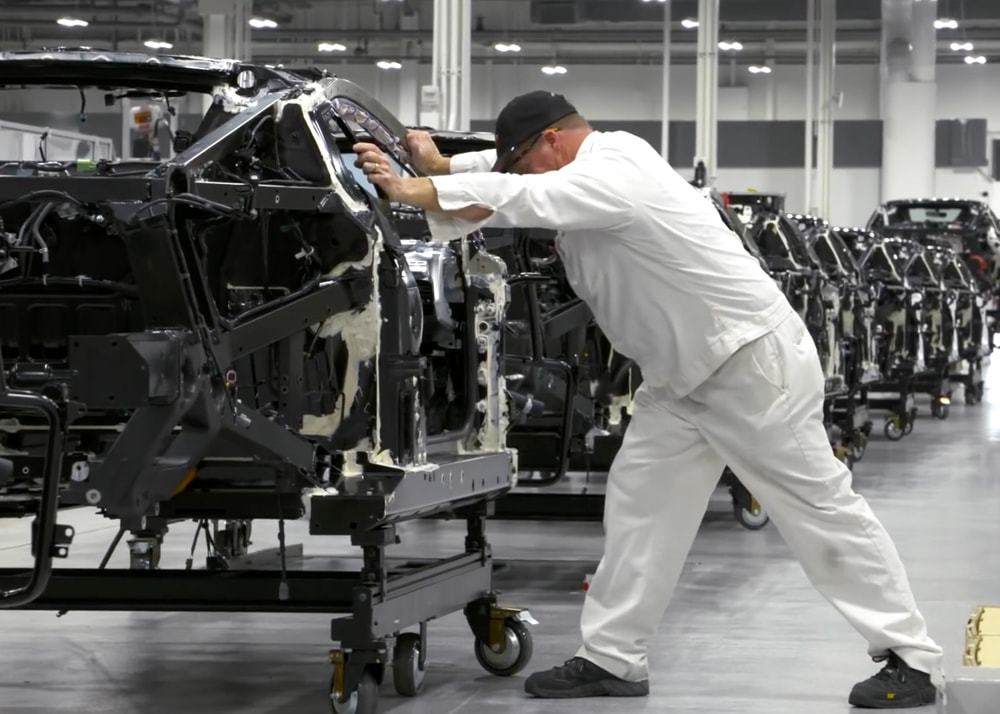

For most industrial applications on smooth concrete, a standard rigid caster is sufficient. However, when equipment must navigate rough pavement, floor gaps, cable crossings, debris, or threshold ramps, these rigid designs become a liability. The resulting impacts generate massive vertical and horizontal forces that compromise sensitive payloads, fatigue equipment structures, and increase the risk of Musculoskeletal Disorders (MSDs) for workers.

Shock-absorbing and suspension casters are the engineered solution to this challenge. They are mechanical systems designed to dampen these destructive forces, ensuring smooth transport, protecting cargo, and reducing the necessary push/pull effort over complex terrain.

The Physics of Rough Ground: Why Standard Casters Fail

Uneven surfaces introduce complex force vectors that must be actively managed.

Understanding Vertical Impact and Horizontal Shear Forces

When a rigid wheel hits an obstacle:

• Vertical Impact: The entire weight of the equipment is instantly multiplied by the impact force (a form of Shock Load), forcing the load upward. This sudden jolt can damage sensitive electronic components or fragile cargo.

• Horizontal Shear Force: The obstacle creates an immediate, severe resistance, translating into a horizontal force that strains the swivel rig, bends the fork legs, and places extreme stress on the wheel axle. This is the primary cause of premature metal fatigue in standard casters.

The Dangers of Payload and Component Vibration (Fatigue Failure)

Continuous vibration, even from minor floor imperfections, leads to long-term issues:

• Payload Damage: Vibration can cause loosening of screws, calibration drift in instruments, and shifting of delicate contents.

• Structural Fatigue: The constant shaking fatigues the caster's metal components (rigging, axles) and the structure of the host equipment (e.g., welds on carts or frames), leading to failure over time.

The Mechanisms of Shock Absorption and Suspension

The goal of suspension is to decouple the movement of the wheel from the movement of the equipment frame.

Single-Action vs. Dual-Action Spring Systems

The most robust solution utilizes mechanical springs, which are typically incorporated into the caster fork legs or the swivel rigging.

• Single-Action Spring: Designed primarily for vertical deflection. These systems use a single heavy spring to absorb a downward jolt (like dropping off a curb). They are simpler and less expensive but offer limited lateral stability.

• Dual-Action Spring: The most advanced system, incorporating springs that absorb both vertical impact and dampen horizontal vibration. This provides superior load control and stability, making them ideal for high-speed towing or extremely valuable/fragile payloads.

Elastomeric Solutions: How Polymer Cushions Replace Springs

In applications where stainless steel is required (e.g., washdown) or where cost must be optimized, specialized polymers are used:

• Polymer Cushions: High-grade elastomeric materials (specialized rubber or polyurethane blocks) can be integrated into the caster design. They provide excellent vibration dampening and medium-range shock absorption without the corrosion risk of metal springs.

• Dynamic Deflection: These materials are engineered to compress dynamically under load, offering a smooth, controlled rebound that minimizes the "bounce" often associated with metal springs.

Optimizing Mobility: Beyond Shock Absorption

The best solution combines suspension with wheel and chassis design tailored for rough conditions.

Dual Wheel and Multi-Wheel Configurations for Stability

While single wheels offer maximum maneuverability, dual-wheel and multi-wheel casters provide critical stability on uneven floors:

• Improved Load Distribution: Dual wheels spread the load over a larger footprint, reducing ground pressure.

• Bridging Capability: When one wheel drops into a gap (like a rail or floor seam), the second wheel often remains supported, providing a "bridge" effect that prevents tipping and severe vertical impact.

Wheel Tread Design for Outdoor and Debris-Heavy Surfaces

The wheel tread itself must be engineered for terrain:

• Crowning/Tapered Treads: Casters with a slightly crowned (rounded) profile reduce the contact surface, making steering easier on soft or debris-laden floors.

• Pneumatic (Air-Filled) Wheels: Offers natural air-cushioning, the highest level of shock absorption, and excellent traction for outdoor, gravel, or grassy areas. However, they require puncture monitoring and reduce static load capacity.

Conclusion: The Investment in Smooth Operation

The decision to specify a suspension or shock-absorbing caster is a clear investment in the longevity of both the equipment and the cargo it carries. By deploying systems engineered with dual-action springs, resilient elastomeric materials, and optimized wheel configurations, companies move beyond basic mobility. They are securing a reliable, safe, and efficient operational foundation, ensuring that critical assets reach their destination without being subjected to the silent, destructive forces of uneven terrain.
